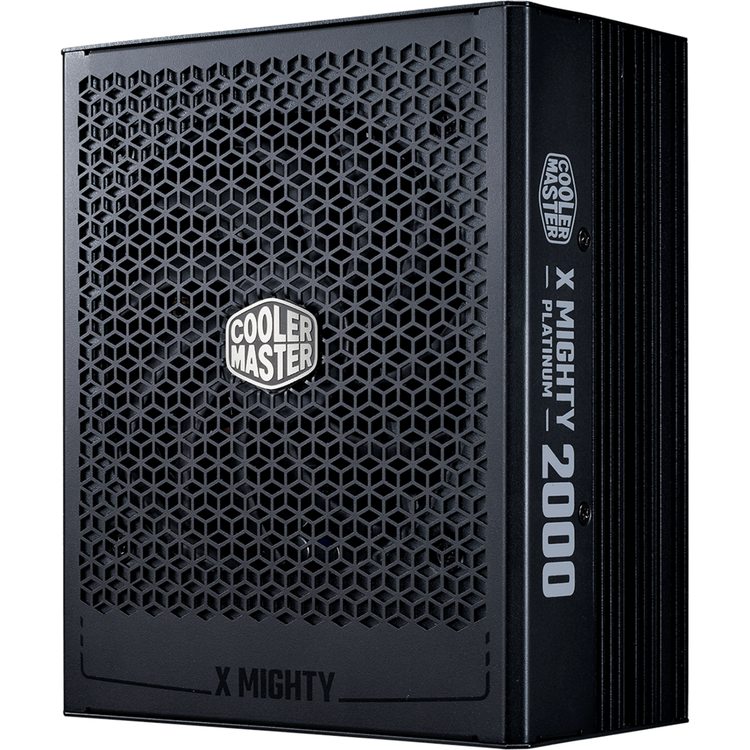

Cooler Master X Mighty Platinum 2000W ATX 3.1 Power Supply
X MIGHTY PLATINUM 2000W 230V
UNLEASH NEXT-GEN MIGHT
- Advanced aluminum thermal structure
- 80 Plus Platinum efficiency certification
- ATX 3.1 support & two durable 12V-2x6 cables
- Dual 40 series GPU support
- Digital Power Management System
UNLEASH NEXT-GEN MIGHT
The X Mighty Platinum is a powerhouse blending high-capacity performance, top-tier industrial-grade IC components, and sophisticated interleaved PFC topology. This PSU is engineered to meet the demanding needs of server and artificial intelligence industries, featuring dual 12V-2x6 connectors designed for rigorous, high-performance applications.
EXCLUSIVE DESIGN FOR SUPERIOR COOLING PERFORMANCE
Cooler Master's exclusive aluminum Thermal Mold in the X Mighty Platinum PSU masterfully disperses heat, complemented by a silent fan with a zero-RPM mode for superior cooling. This dual strategy ensures effective thermal management, maintaining peak performance while prolonging the PSU's lifespan.
ACTIVE BRIDGE RECTIFIER BOOSTS EFFICIENCY
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.
DIGITAL POWER MANAGEMENT SYSTEM & MASTERCTRL
The X Mighty Platinum PSU is a hub of intelligent monitoring and control. Equipped with high-performance MCUs and integrated with Cooler Master's MasterCTRL software, this PSU lets you view its operation. Real-time monitoring of temperature, current load, and efficiency ensures optimal performance and reliability.
FULLY MODULAR CABLING & EXTRA FUNCTIONS
Modular cabling minimizes clutter, while the additional ports provide extra functionality.
ATX 3.1 SUPPORT & A DURABLE 90° 12V-2X6 CABLE
Includes ATX 3.1 support and a 90° 12V-2x6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
Model
MPS-K001-AFBP
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
200-240V
Input Current
12A (Max)
Input Frequency
50-60Hz
Dimensions (L x W x H)
180 x 150 x 86 mm
Fan Size
120mm
Fan Bearing
FDB
Fan Speed
2000 RPM
Efficiency
= 94% @ Typical Load
80 PLUS Rating
80 PLUS Platinum
ErP 2014 Lot 3
Yes
Operating Temperature
0-50°C
Power Good Signal
100 - 150 ms
Hold Up Time
= 16ms
MTBF
>100,000 Hours
Protections
OPP, OVP, OTP, OCP, SCP, UVP, Surge and Inrush Protection
Regulatory
cUL, TUV, CE, FCC, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
ATX 24 Pin Connectors
1
EPS 4+4 Pin Connectors
1
EPS 8 Pin Connector
1
SATA Connectors
12
Peripheral 4 Pin Connectors
4
PCI-e 6+2 Pin Connectors
4
12V-2x6 Connectors
2
USB 10P Connector
1
Series
X Series
80 Plus
Platinum
Modular
Fully Modular
Category
2000W
