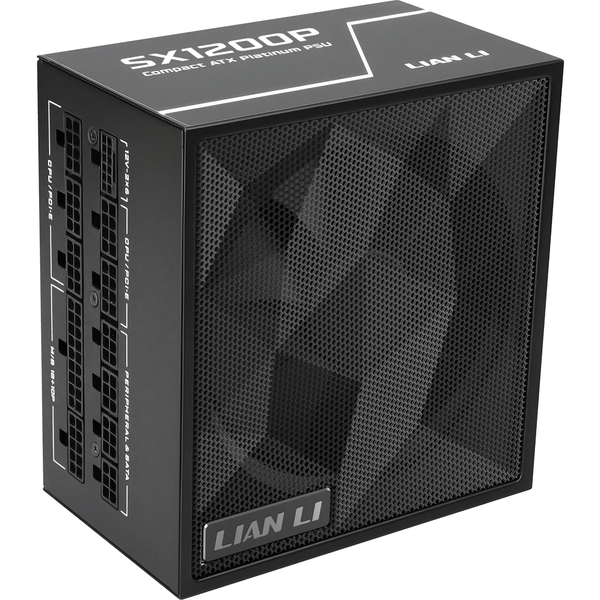

SX Platinum - 80 PLUS Platinum &; PPLP Platinum certified for efficiency and reduced heat.- ATX 3.1 ready with reinforced 12V-2x6 high-current terminals for next-gen GPUs.- Delivers stable 12V power with support for power excursions up to 200% of rated output.- Fanless operation up to 40% load with smart stop/start for whisper-quiet performance.- Equipped with 100% Japanese Rubycon / Nippon Chemi-Con / Nichicon 105°C capacitors.- Compact 140 mm ATX length for wide-case compatibility.
Platinum Certified Experience next-level performance with the SX Platinum Series, featuring 80 PLUS® Platinum and PPLP Platinum certifications and full compliance with ATX 3.1 and PCIe 5.1 standards. It delivers stable +12V power, whisper-quiet fanless cooling up to 40% load, and exceptional durability with premium Japanese capacitors.
80 PLUS PLATINUM EFFICIENCY The SX Platinum Series delivers up to 94% conversion efficiency at 50% load, achieving 80 PLUS® Platinum-level performance and reducing AC losses and heat, allowing your system to run cooler, quieter, and more cost-effective over time.
Smart Stop/Start for Quiet Operation When the PSU load is at or below 40%, the fan enters its smart stop/start mode to keep the system quiet under low loads. This feature can also be enabled or disabled using the switch on the rear of the unit.
FAN SPEED / NOISE CURVE
Fully Modular A fully modular design gives you the freedom to install only the cables your setup calls for, keeping your system neat, optimized, and ready to showcase.
Braided Cables for a Finished Look The SX Platinum Series includes braided cables and cable combs to enhance both appearance and durability, making cable management easier and giving your build a clean, professional finish. Note: Main cables use braided sleeving. The 24-pin, CPU, and 12V-2x6 GPU cables include cable combs. Other cables, such as SATA and the 12V-2x6 to dual PCIe (6+2) Pin cable, use flat ribbon sleeving.
ATX 3.1 and PCIe 5.1 Standards Supporting power excursions up to 200% of its rated output, it delivers stable power for high-performance systems, ensuring smooth and reliable gameplay.
Stable Dual-Color PCIe 5.1 Connector Equipped with a 12V-2x6 copper-alloy terminal for safe and efficient power delivery, enhancing system stability and performance. Note: Ensure the blue section is fully inserted when connecting to the graphics card.
Ample PCIe 6+2 Power Support Includes three PCIe 6+2 cables, plus two additional 12V-2x6 to dual PCIe 6+2 Pin cables on the 1000W and 1200W models, providing reliable support for multiple devices.
TRIPLE PCIe 6+2 pin GPU SUPPORT Provides up to five PCIe 6+2 connectors (four on the 850W model), meeting the power needs of high-end AMD graphics cards. This flexible design makes it an ideal choice for users planning future performance upgrades.
100% Japanese Rubycon 105°C Capacitors All electrolytic and solid capacitors are sourced from leading Japanese brands, Rubycon, Nippon Chemi-Con, or Nichicon, and are 105°C-rated components. These high-grade capacitors ensure stable voltage regulation, lower ripple, and long-term reliability even under high-temperature operation.
Standard Size for Better Case Compatibility The SX Platinum Series uses a highly compatible standard ATX form factor with a length of only 140 mm, fitting a wide range of cases and leaving more interior space during installation. Demo Case: O11 Vision Compact
Ideal for users looking to install an ATX PSU in an mATX case, the 140 mm standard length offers better compatibility, frees up cable-routing space, and enhances the overall building experience. Demo Case: A3-mATX
Vented Front Panel for Better Airflow The patterned open-mesh front panel boosts both the PSU's appearance and cooling performance.
Comprehensive Protection Equipped with OCP, OVP, OTP, OPP, SCP, UVP, NLP, and SIP protection to guard against overcurrent, overvoltage, overheating, overload, and short-circuit conditions for reliable operation.
Safety Certifications
Cable Configuration
- PRODUCT NAME
- SX1200P
- MODEL
- SX1200P
- DIMENSIONS
- (W)150 mm X (H)86 mm X (D)140 mm
- DC OUTPUT Cable
- Fully-Modular
- COLOR
- Black
- ATX12V Version
- ATX 3.1
- EFFICIENCY CERTIFICATION
- 80 PLUS Platinum
- MAX. DC OUTPUT
- 1200W
- Combined +3.3V & +5V Output
- 100W
- COMBINED +12V
- 1200W
- INPUT RATING
- 100-240Vac
- INPUT RATING
- 7.5-14.8A,50-60Hz
- POWER FACTOR CORRECTION (PFC)
- Active PFC, PF > 0.95 under full load @ 115Vac, 60Hz
- PROTECTION
- OPP, NLP, OVP, SCP, OCP, OTP, SIP, UVP
- FAN TYPE
- 120 mm FDB fan
- MAX. FAN SPEED
- 2000RPM
- AVERAGE FANLESS OPERATING TIME
- Minimum 100,000 hours @ 25°C / 75% load
