EDGE
- L-Shape design for dual chamber case
- 80 PLUS Platinum Efficiency
- Built-in USB expantion hub with 4 internal USB 2.0 headers
- Integrating German EPCOS bulk capacitors
- In-house R&D 12V-2×6 alloy copper soldered terminals
- ATX 3.0/3/1 compliant PSU
- Full modular sleeved cable with cable comb MB/CPU/GPU connectors
EDGE - THE "POWER" FOR DUAL CHAMBER CASES
The EDGE PSU series introduces a revolutionary power supply featuring a unique L-shape design, an integrated USB hub, and enhanced efficiency. Experience the blend of aesthetics and convenience in your PC build.

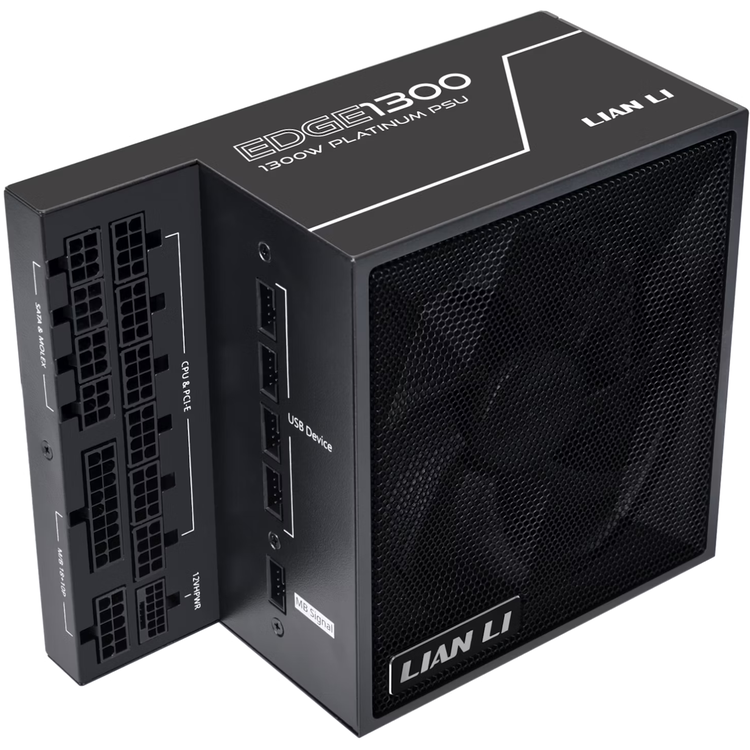

INNOVATIVE L-SHAPE DESIGN
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE PSU's L-shape design is ideal for vertical installation at the second chamber.
This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
POWER AND USB HUB TWO-IN-ONE
The full Edge Series integrates 4 × 9-pin internal USB expansion, which function as a 1-to-7 USB hub, simplifying the connection of USB devices such as UNI fans, Strimer Plus, and RGB controllers to the motherboard.
All USB ports features uninterruptible power, allowing connected devices to remain operational when the PC is turned off, as long as the power supply is on. Each port supports a rate current of 500mA.
1 - CONNECT TO USB DEVICES
Port #1 provides 1 USB signal, while port#2/3/4 each provide 2 USB signals. This allows for up to 7 USB devices when using a 1-to-2 splitter cable at port #2/3/4 .
Note: Due to the TL controller's 2-in-1 USB design to support both TL LCD and TL, it is recommended to connect it to port#2/3/4. Other LIAN LI or third-party controllers can be connected to any port.
For detailed limited number of TL and LCD fans supported when using the Edge PSU's USB signal, please click here.
2 - CONNECT TO MOTHERBOARD
Offers two options for motherboard signal connection to accommodate different configurations.
STANDARD INTERNAL USB CONNECTOR
Connect to the motherboard in the main chamber
USB TYPE A CONNECTOR
Connect to the rear IO of the motherboard
PLATINUM CERTIFIED
Achieving the 80 PLUS, Cybenetics and PPLP Platinum certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
EDGE 1300W Efficiency
ATX 3.0 AND 3.1 COMPLIANT
Fully compliant with ATX 3.0 and 3.1 standards, the EDGE Series meets the latest power supply specifications, ensuring compatibility with the newest components and motherboards.
STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI's in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
1 - Dual-color shell for confirming secure connections
2 - Added gold plating to prevent short circuits
3 - Soldered wire and terminal connection for current stability
4 - Increased copper thickness to 0.25mm for lower contact resistance
The terminal maintain a contact resistance below 1.5mO after 50 plug/pull cycles, compared to ordinary terminals at 2-3mO, enhancing the connector's performance and long-term reliability.
Included in the 1300W version, an extra dual 8-pin to 12V-2x6 cable is ready for the future power hunger dual connection GPUs.
INDUSTRIAL GRADE CAPACITORS
The EDGE PSU integrates the German EPCOS capacitors, offering compact, robust performance with higher tolerance to temperature and harsh environments.
Featuring LLC topology and Active PFC, the EDGE PSU enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
Edge 1300W Fan Acoustic Noise (Ambiance temperature 25?)
Note: The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation.
PREMIUM BRAIDED SLEEVED CABLES FOR A CLEAN BUILD
The power supply units come equipped with 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables featuring premium braided sleeves. These cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
Comprehensive SATA Power Solutions
Included with the EDGE PSU series are several SATA power cables to suit various needs:
Note: Please do not connect 850W or 1000W cables to a 1300W power supply unit. Using incompatible cables can lead to serious damage to your components and may void your warranty.
Y-Type SATA Cable:
Perfect for connecting drives and controllers located in different areas, providing flexibility and reducing cable clutter.
Close-Type SATA Cable:
A 300mm long cable with 15mm spacing between power connectors, making it easy to attach devices while maintaining a tidy setup.
COMPREHENSIVE CONNECTORS
The modular cables are measured precisely for the dual chamber chassis to avoid bulkiness and ensure efficient cable management.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Over Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of electrion flow Protection), NLP (No Load Protection) and inrush current limiter that make the PSU operating in stable condition.
MODEL NAME
EDGE1300
MODEL NO.
EG1300
COLOR
Black
DIMENSIONS
(D)182 mm X (W)86 mm X (H)150 mm
POWER SUPPLY DESIGN
Fully modular
MATERIAL
Steel
FORM FACTOR
ATX 3.1
CERTIFICATION
80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM
MAX. DC OUTPUT
1300W
COMBINED +3.3V & +5V
120W
COMBINED +12V
1296W
INPUT VOLTAGE
100-240Vac
INPUT FREQUENCY RANGE
15-7.5A 50-60Hz
PFC
Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
EFFICIENCY
92.39% MAX
PROTECTIVE CIRCUIT
OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP
CONNECTORS
1 x 24/20-Pin motherboard connector (500mm) x1pcs
1 x 8/4+4 Pin CPU/ATX 12V connector (550mm) x2pcs
1 x 8/6+2 Pin PCle connector (550m m) x4pcs
1 x 12V-2×6 connector (550mm) × 1pcs
1 x 12VHPWR - 2 x 8pin connector (550mm) × 1pcs
4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs
4 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
4 x Y Type SATA connector (400mm-125mm*2) x1pcs
USB*9pin - USB*9pin connector (350mm) × 1pcs
USB*9pin -Type A connector (550mm) × 1pcs
FAN TYPE
120mm FDB Fan
FAN SPEED
2400RPM
FAN NOISE LEVEL
33.61dBA
