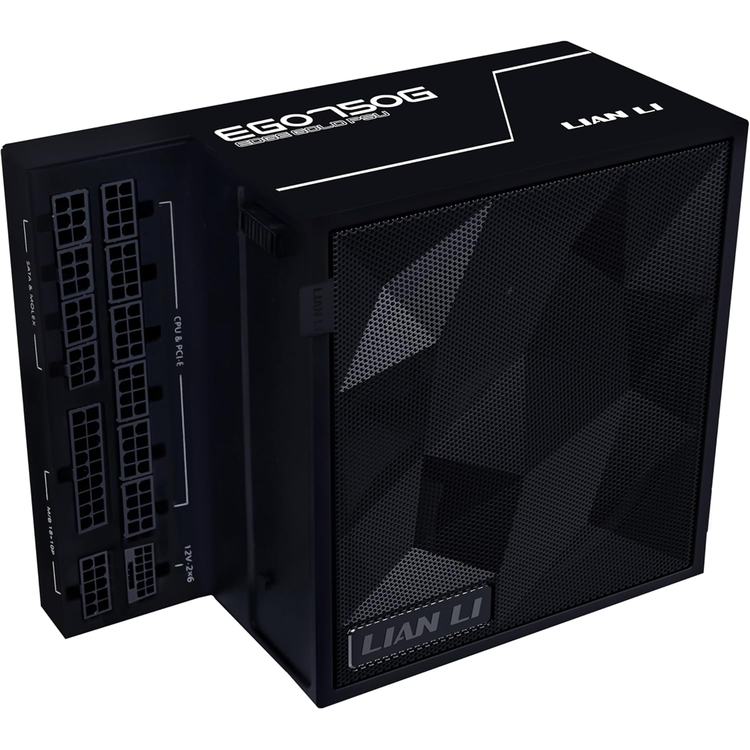

EDGE GOLD - L-shape design tailored for dual chamber cases- 80 PLUS Gold efficiency- PCIe 5.1 ready with in-house R&;D 12V-2x6 alloy copper soldered terminals- Removable magnetic fan dust filter- Built with German top-end, industrial-grade EPCOS capacitors- Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors THE "POWER" FOR DUAL CHAMBER CASES The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build. - 80 PLUS GOLD- CYBENETICS GOLD (EG0750G)- L-SHAPE DESIGN- ATX 3.1- PCIE5.1- REMOVABLE DUST FILTER
INNOVATIVE L-SHAPE DESIGN This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MOTHERBOARD SIGNAL CONNECTION Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.
Offers two options for motherboard USB signal connection to accommodate different configurations. USB type-A
USB-USB
MAGNETIC DUST FILTER The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU's lifespan and reliability.
CONVENIENT CABLE MANAGEMENT Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU's L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
LONGER CABLE REACH FOR VERSATILE BUILDS The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease. Edge Platinum PSU
Edge Gold PSU Edge Platinum PSU features shorter cables for dual-chamber chassis, while Edge Gold PSU includes extended cables for regular tower chassis.
EFFICIENCY LEVEL CERTIFIED Achieving the 80 PLUS Gold, Cybenetics Platinum and PPLP Gold certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
EDGE GOLD 750W Efficiency
COOL IN SILENCE Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
Edge Gold 750W Fan Acoustic Noise (Ambiance temperature 30?) Note: The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation.
STABLE DUAL COLOR PCIE5.1 CONNECTOR LIAN LI's in-house R&;D designed a high-quality 12V-2×6 dual-color connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance. 1 - Dual-color shell for confirming secure connections2 - Added gold plating to prevent short circuits3 - Soldered wire and terminal connection for current stability4 - Increased copper thickness to 0.25mm for lower contact resistance
The terminal maintain a contact resistance below 1.5mO after 50 plug/pull cycles, compared to ordinary terminals at 2-3mO, enhancing the connector's performance and long-term reliability.
BRAIDED-TEXTURE SLEEVED CABLES FOR A CLEAN BUILD The PSU comes equipped with all cables featuring a braided texture. The 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build. Braided-texture cable with cable comb
Combined braided-texture cable
INDUSTRIAL GRADE CAPACITORS The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.
COMPREHENSIVE CONNECTORS The modular cables have a new longer design compared to the previous EDGE PSU, which ensures easy component reach and efficient cable management.
SUFFICIENT PROTECTION Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of election flow Protection), NLO (No Load Operation), and an Inrush Current Limiter that ensures the EDGE GOLD delivers continuously stable and reliable power.
- PRODUCT NAME
- EDGE GOLD 750
- MODEL
- EG0750G
- DIMENSIONS
- (D)182 mm X (W)86 mm X (H)150 mm
- POWER SUPPLY DESIGN
- Fully modular
- COLOR
- Black
- MATERIAL
- Steel
- FORM FACTOR
- ATX 3.1
- CERTIFICATION
- 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD
- MAX. DC OUTPUT
- 750W
- COMBINED +3.3V & +5V
- 120W
- COMBINED +12V
- 744W
- INPUT VOLTAGE
- 100-240Vac
- INPUT FREQUENCY RANGE
- 9-4.5A 50-60Hz
- PFC
- Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
- EFFICIENCY
- 90.52%MAX
- PROTECTIVE CIRCUIT
- OCP/OVP/OTP/OPP/SCP/UVP
- CONNECTORS
- 1 x 24/20-Pin motherboard connector (620mm) x1pcs
- 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs
- 1 x 4+4 Pin CPU connector (750mm) x1pcs
- 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs
- 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
- 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs
- 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
- 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
- 1 x 12V - 2X6 450W connector (650mm) x1pcs
- 2 x 6+2 Pin GPU connector (650mm) x2pcs
- FAN TYPE
- 120mm FDB Fan
- FAN SPEED
- 2000RPM
- FAN NOISE LEVEL
- 30.9dBA
