EDGE GOLD
- L-shape design tailored for dual chamber cases
- 80 PLUS Gold efficiency
- PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
- Detachable USB hub with 4 internal USB 2.0 headers and 6 PWM headers
- Removable magnetic fan dust filter
- Built with German top-end, industrial-grade EPCOS capacitors
- Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors
THE "POWER" FOR DUAL CHAMBER CASES
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.

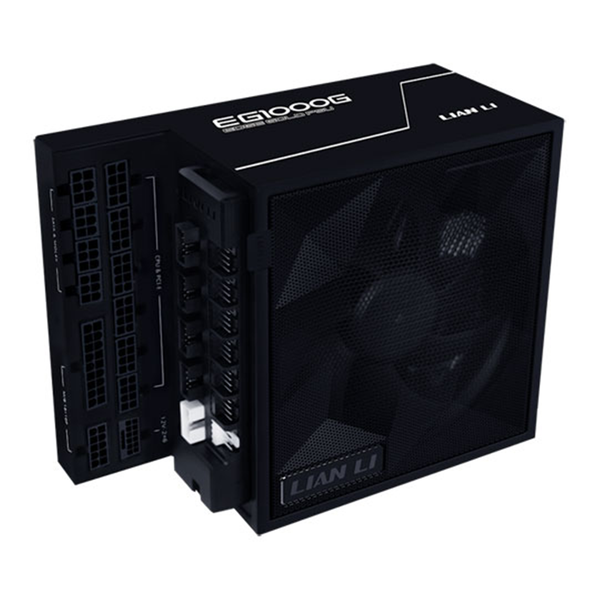

INNOVATIVE L-SHAPE DESIGN
Introducing the world's first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MODULAR USB & FAN PWM HUB - EDGE HUB
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.
1. Fan PWM Hub
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.
2. USB Hub
4 ports supporting up to 8 downstream connections, ideal for RGB controllers and USB devices, with a total output of 2.5A.
3. Edge PSU Connector
Remove the cap and attach the hub directly to the Edge PSU for power.
4. Magnetic Design
Integrated magnets allow easy placement and accessibility inside the case.
5. Independent Power Supply
Connect the hub to a PCIe 8-PIN cable for independent operation.
MOTHERBOARD SIGNAL CONNECTION
Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.
MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU's lifespan and reliability.
CONVENIENT CABLE MANAGEMENT
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU's L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
LONGER CABLE REACH FOR VERSATILE BUILDS
The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI's in-house R&D designed a high-quality 12V-2×6 dual-color connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
BRAIDED-TEXTURE SLEEVED CABLES FOR A CLEAN BUILD
The PSU comes equipped with all cables featuring a braided texture. The 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
INDUSTRIAL GRADE CAPACITORS
The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.
MODEL
EG1000G
DIMENSIONS
(D)182 mm X (W)86 mm X (H)150 mm
POWER SUPPLY DESIGN
Fully modular
COLOR
Black
MATERIAL
Steel
FORM FACTOR
ATX 3.1
CERTIFICATION
80 PLUS GOLD
MAX. DC OUTPUT
1000W
COMBINED +3.3V & +5V
120W
COMBINED +12V
996W
INPUT VOLTAGE
100-240Vac
INPUT FREQUENCY RANGE
10-5A 50-60Hz
PFC
Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
EFFICIENCY
91.24%MAX
CONNECTORS
1 x 24/20-Pin motherboard connector (620mm) x1pcs
1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs
1 x 4+4 Pin CPU connector (750mm) x1pcs
1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs
1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs
1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
1 x 12V - 2X6 450W connector (650mm) x1pcs
2 x 6+2 Pin GPU connector (650mm) x2pcs
FAN TYPE
120mm FDB Fan
FAN SPEED
2000RPM
FAN NOISE LEVEL
30.9dBA
