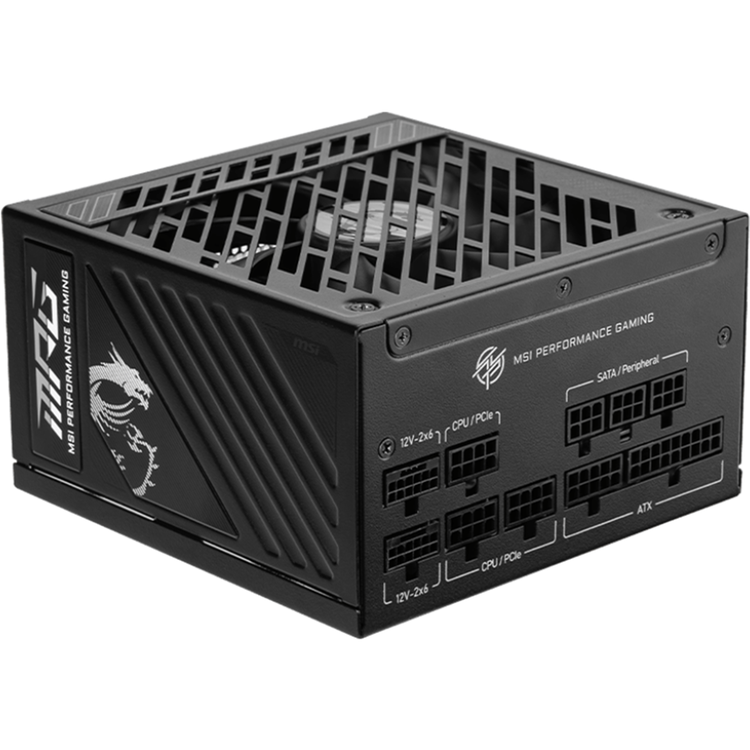

MSI MPG 850W Power Supply 80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 10 Years Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP
MPG A850GS PCIE5
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- The lowest sound level, Cybenetics A++ Certificaion
- 100% all Server-grade 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
MPG - MSI PERFORMANCE GAMING
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
Dual-native 12V-2x6 Connector
This power supply stands as a cornerstone for powering advanced computing environments. Whether you're training machine learning models or image processing, this PSU ensures stability and performance without compromise.
Semi Digital
This power supply comes with IC to control PFC, LLC significantly enhance accuracy. This architecture enables managing dynamic adjustments, delivering more stable and efficient power output.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
Gold Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Gold certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
Server-grade Electrolytic 105°C Capacitor
This power supply is built for outstanding quality and reliable performance, featuring 100% Server-grade 105°C capacitors along with advanced CoolMOS and SiC SBD components. It is designed for efficient power conversion and long-lasting, safe operation.
Midnight Sound Level
This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.
Zero Fan Mode
The Zero fan mode ON, available to stop the fan's operation when TDP is below 60% to help with energy saving and providing silence.
Fluid Dynamic Bearing
This power supply's comes with 135 mm fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.
Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.
Built for Maximum Safety
The power cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
Protection Mechanisms
To make sure the entire system can operate safely and stably at all times, here comes with a number of protection mechanisms to give you the best peace of mind.
- OCP
- OTP
- OPP
- SCP
- OVP
- UVP
- SIP
- NLO
Surge Protection
This power supply features external voltage spike protection, making it a reliable choice for use in small-scale data centers where stability and safety are crucial.
Dual-color 12V-2x6 cable
The 12V-2x6 cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.
Embossed Jacket Modular Cable
Using premium materials to enhance the cable's flexibility and bendability, the sleek matt black design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.
CABLE ORGANIZER
Pre-install the cable organizer to make organizing cables more convenient. Additionally, the cable organizer's position can be adjusted freely as needed.
CONNECTORS
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Yes (full modular)
Fan Size
135 mm
Fan Bearing
Fluid Dynamic Bearing
Dimensions (DxWxH)
150 x 150 x 86 mm
PFC Type
Active PFC
Input Voltage Range
100-240V~
Power Watt
850W
Power Excursion
1700W (*up to 200% of the PSU's rated power for 100µs)
Input Frequency Range
50-60 Hz
Protection
OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
1 (600W)
PCI-E (6+2 pin)
3
SATA (15 pin)
8
PERIPHERAL (4 pin)
4
