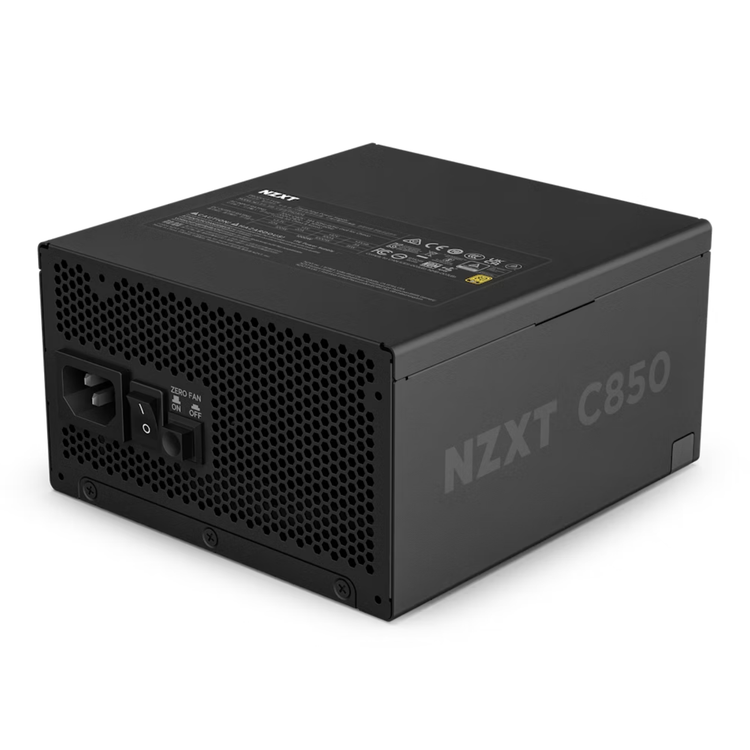

C850 Gold ATX 3.1
850 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.
ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.
40 Series Ready
12V-2x6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.
Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.
Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.
100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.
Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.
Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.
Inside the Box
C850 Gold x1
24-Pin ATX Power Cable x1
4+4-pin CPU Power Cable x1
8-pin CPU Power Cable x1
6+2-pin PCIe Power Cable x3
16-pin (12+4) 12V-2x6 PCIe Cable x1
SATA Cable x3
Peripherals Cable x1
6-32 Screws x4
AC Power Cord x1
Output Connectors
24-pin ATX Power Cable
1
4+4-pin CPU Power Cable
1
8-pin CPU Power Cable
1
6+2-pin PCIe Power Cable
3
16-pin (12+4) 12V-2x6 PCIe Cable
1
SATA Cable
12
Peripherals Cable
4
Cable Specs
24-pin ATX Power Cable
600mm with nylon sleeving
4+4-pin CPU Power Cable
700mm with nylon sleeving
8-pin CPU Power Cable
700mm with nylon sleeving
6+2-pin PCIe Power Cable
650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable
650mm with nylon sleeving
SATA Cable
500 + 150mm
Peripherals Cable
500 + 150mm
AC Input Rating
100 - 240Vac
10A-5A 50Hz-60Hz
200 - 240Vac
-
DC Output Rating
3.3V / +5V
22A (120W)
12V
70.83A (850W)
5Vsb
3A (15W)
Total
850W
Energy Efficiency
Rating
80 Plus Gold
10% loading
85.8% @115Vac
20% loading
89.5% @115Vac
50% loading
91.7% @115Vac
100% loading
89.2% @115Vac
Electrical Features
PF Correction
Active @0.99
Protections
OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
Dimensions
135 x 135 x 25 mm
Speed
2300 ± 10% RPM
Airflow
93.02 CFM (Min.)
Noise
44.5 dBA max
Bearing
Fluid Dynamic Bearing (FDB)
Operation
MTBF
100,000 hours
Temperature
0 - 50 °C
Dimensions
Width
150 mm
Height
86 mm
Depth
160 mm
General
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v3.1 / EPS12V v2.92
Regulation & Certification
FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
