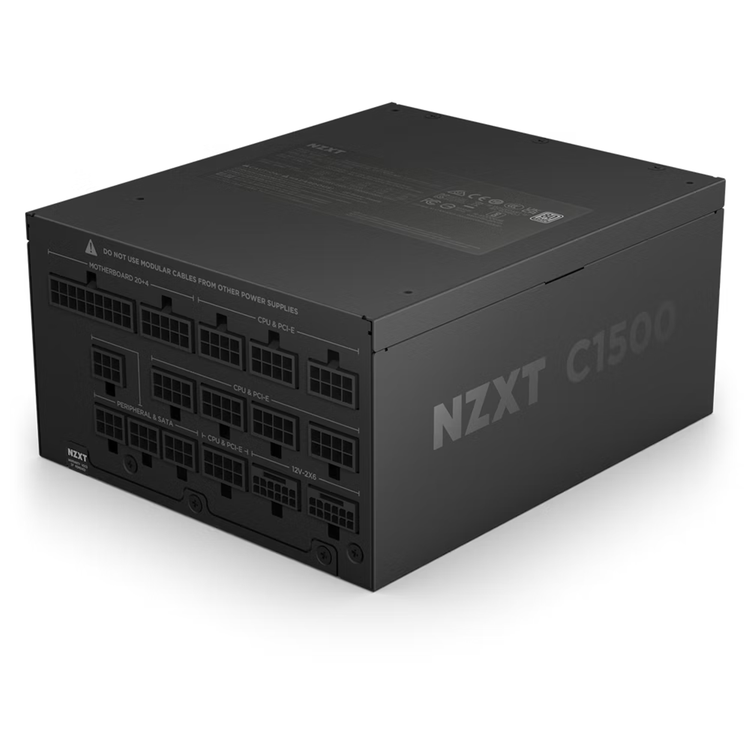

C1500 Platinum ATX 3.1
1500 Watt 80 PLUS Platinum Fully Modular ATX 3.1 PSU
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.
Digital Power
Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceptional Efficiency
Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.
Magnetic Levitation Fan
140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.
Built with Quality
Constructed using all 105°C Japanese capacitors for unmatched reliability.
Fully Modular Design
Simplifies cable management by allowing connection of only necessary cables.
Space-Saving Size
Compact 180mm form factor optimizes case space while promoting improved airflow.
Inside the Box
C1500 Platinum x1
24-pin ATX Power Cable x1
4+4-pin CPU Power Cable x1
8-pin CPU Power Cable x1
6+2-pin PCIe Power Cable x6
16-pin (12+4) 12V-2x6 PCIe Cable x2
SATA Cable x3
Peripherals Cable x1
6-32 Screws x4
AC Power Cord x1
Output Connectors
24-pin ATX Power Cable
1
4+4-pin CPU Power Cable
1
8-pin CPU Power Cable
1
6+2-pin PCIe Power Cable
6
16-pin (12+4) 12V-2x6 PCIe Cable
2
SATA Cable
12
Peripherals Cable
4
Cable Specs
24-pin ATX Power Cable
600mm with nylon sleeving
4+4-pin CPU Power Cable
700mm with nylon sleeving
8-pin CPU Power Cable
700mm with nylon sleeving
6+2-pin PCIe Power Cable
650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable
650mm with nylon sleeving
SATA Cable
500 + 150 mm with nylon sleeving
Peripherals Cable
500 + 150 mm with nylon sleeving
AC Input Rating
100 - 240Vac
15A-9A 50Hz-60Hz
200 - 240Vac
9A 50Hz-60Hz
DC Output Rating
3.3V / +5V
22A (120W)
12V
125A (1500W)
5Vsb
3A (15W)
Total
1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
Rating
80 Plus Platinum
10% loading
92% @115Vac
20% loading
94% @115Vac
50% loading
93.8% @115Vac
100% loading
90.8% @115Vac
Electrical Features
PF Correction
Active @0.99
Protections
OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
Dimensions
140 x 140 x 25 mm
Speed
2500 ± 10% RPM
Airflow
125 CFM (Tpy.)
Noise
41.0 dBA max
Bearing
Magnetic Levitation Bearing (ML)
Operation
MTBF
100,000 hours
Temperature
0 - 50 °C
Dimensions
Width
5.91 in / 150 mm
Height
3.39 in / 86 mm
Depth
7.09 in / 180 mm
General
Material(s)
Steel, PCB and Plastic
Compliance Standard
ATX12V v3.1 / EPS12V v2.92
Regulation & Certification
FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
