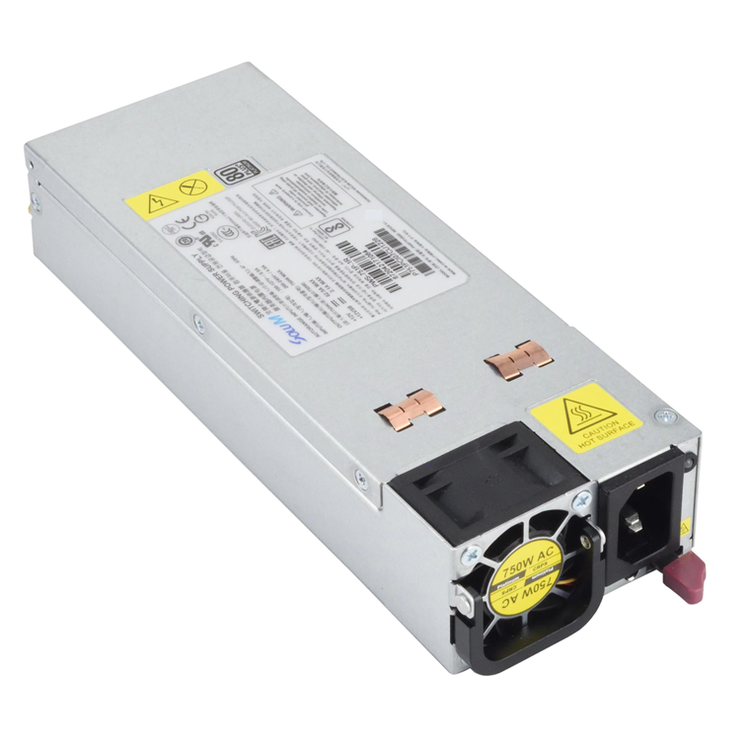

Supermicro PWS-751P-1R 750W Redundant Power Supply Module
The Supermicro PWS-751P-1R is an 80 Plus Platinum level redundant power supply capable of continuously supplying 750W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.
Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro Ultra server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Total Power Output
750W
Type
Module
Form Factor
1U
Dimension (W x H x L)
73.5 x 40 x 203mm
+5V
N/A
+12V
62.5A
+3.3V
N/A
5V Standby
N/A
Input Voltage Range
100-127Vac; 200-240Vac
Input Frequency Range
50-60Hz
PMBus
9.5A; 4.5A
Output Type
Gold Finger (25 Pair Connector)
8Pin / 4Pin (12V) Connector
N/A
PFC
Yes
PMBus
Yes
Energy Efficiency
94% Peak
80 Plus Certification
80 Plus Platinum
Validated Systems
SSG-6129P-ACR12N4L,
SYS-1028U-E1CR4+,
SYS-1028U-E1CRTP+,
SYS-1028U-TNR4T+,
SYS-1028U-TNRT+,
SYS-1028U-TNRTP+,
SYS-1028U-TR4+,
SYS-1028U-TR4T+,
SYS-1028U-TRT+,
SYS-1028UX-CR-LL1,
SYS-1028UX-CR-LL2,
SYS-1028UX-LL1-B8,
SYS-1028UX-LL2-B8,
SYS-1028UX-LL3-B8,
SYS-1029U-E1CR4,
SYS-1029U-E1CR4T,
SYS-1029U-E1CR25M,
SYS-1029U-E1CRT,
SYS-1029U-E1CRTP,
SYS-1029U-E1CRTP2,
SYS-1029U-TR4,
SYS-1029U-TR4T,
SYS-1029U-TR25M,
SYS-1029U-TRT,
SYS-1029U-TRTP,
SYS-1029U-TRTP2,
SYS-1029UX-LL1-C16,
SYS-1029UX-LL1-S16,
SYS-1029UX-LL2-C16,
SYS-1029UX-LL2-S16,
SYS-1029UX-LL3-C16,
SYS-1029UX-LL3-S16,
SYS-6018U-TR4+,
SYS-6018U-TR4T+,
SYS-6018U-TRT+,
SYS-6018U-TRTP+,
SYS-6019U-TN4R4T,
SYS-6019U-TN4RT,
SYS-6019U-TR4,
SYS-6019U-TR4T,
SYS-6019U-TR25M,
SYS-6019U-TRT,
SYS-6019U-TRTP,
SYS-6019U-TRTP2
Validated Chassis
CSE-119UTS-R751P-T,
CSE-819UTS-R751P-T
Product Environmental Compliance
RoHS and REACH compliant
