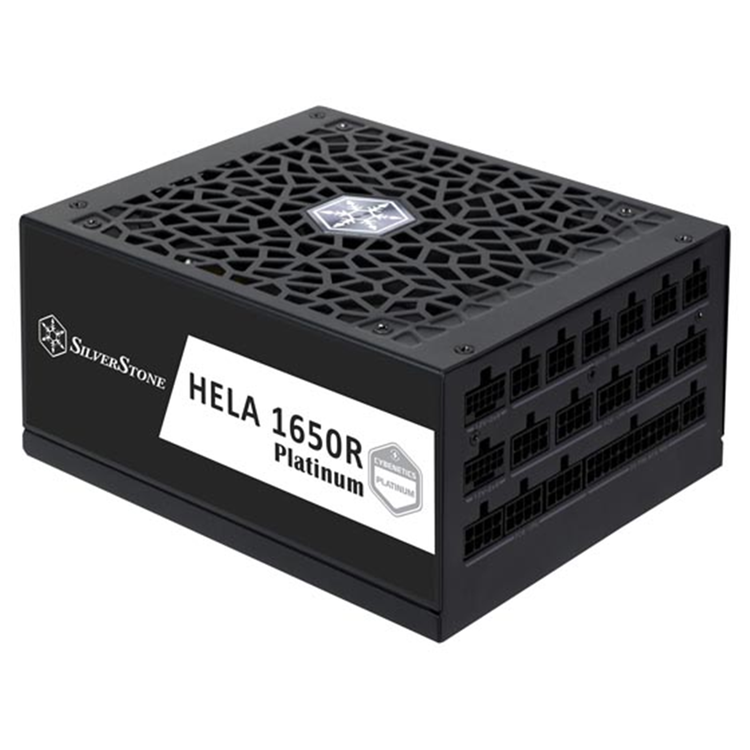

Silverstone HELA HA1650R 1650W ATX 3.1 Plantinum Power Supply
HELA 1650R Platinum
Cybenetics Platinum 1650W PCIe 5 Fully Modular ATX (PS2) Power Supply
- Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- 24/7 continuous power output with 50? operating temperature
- Fully modular design with SilverStone's 3rd generation modular interface
- Silent-running 140mm FDB fan with delayed shut-off function
- All black flat cables
12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen5 standards
Easily and efficiently power high-end systems with the latest graphics cards.
Cybenetics Platinum certified
Designed for Cybenetics Platinum level of efficiency, to minimize wasted heat while significantly reducing electricity consumption.
Fully modular design with universal EPS / PCIe connector interface
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese electrolytic capacitors
Guarantees dependable power delivery and an extended lifespan.
High reliability cooling fan with delayed shut-off function
Equipped with a 140mm FDB bearing fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Product No.
SST-HA1650R-PM
Model (safety certification)
SST-AX1650MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1650W
Power density
710.6W/L
Load Range
Output +3.3V +5V +12V1 +5VSB -12V
Max.(Amps) 25A 25A 137.5A 3A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±3%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
130W
Combined +12V
1650W
Input Voltage
1650W: 103~264 Vrms
1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
9 x 8 / 6-Pin PCIe connectors
2 x 12+4-Pin 12V-2x6 connectors
16 x SATA connectors
6 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
Silent 140mm FDB fan
Noise Level
18 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91" (W) x 2.5" (H) x 7.1" (D)
Weight
2.09 kg
