Note The Raspberry Pi Sense HAT is compatible with the Raspberry Pi 3, Raspberry Pi 2, Model B+, and Model A+, but NOT the earlier 26-pin models of Raspberry Pi 1 Model B & A's. Pi not included!

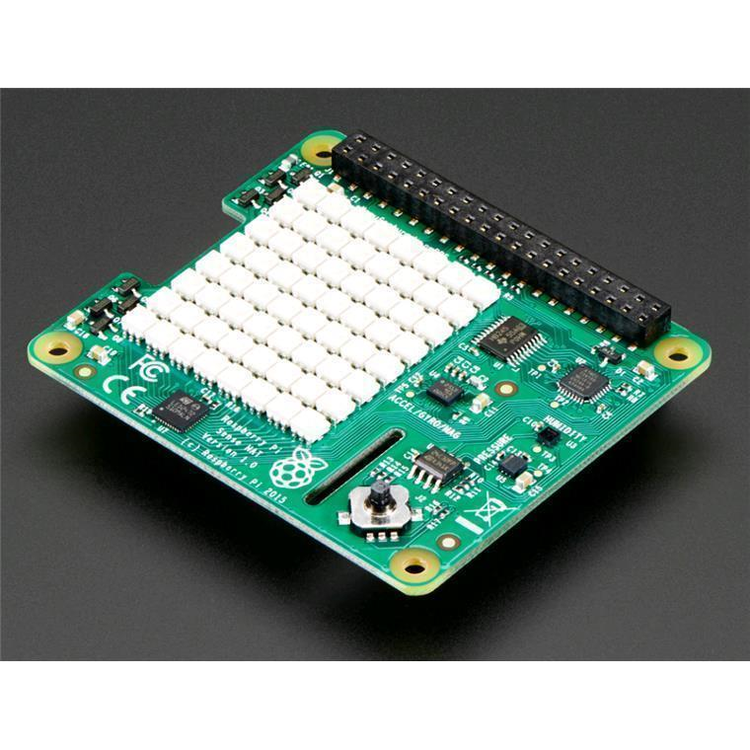

The Raspberry Pi Sense HAT is attached on top of the Raspberry Pi via the 40 GPIO pins. The Sense HAT has several integrated circuit based sensors that can be used for many different types of experiments, applications, and even games.
Product Information
Silicon Manufacturer
Atmel
Core Architecture
AVR
Silicon Core Number
ATtiny88
Silicon Family Name
tinyAVR
For Use With Raspberry Pi Single Board Computers
Technical Data Sheet (332.00KB) EN
To Install
1. Connect your Sense HAT to the Raspberry Pi via the 40 GPIO Pins
2. Open up a terminal and run the following command
wget -O - http//www.raspberrypi.org/files/astro-pi/astro-pi-install.sh --no-check-certificate | bash
(This will take approximately 5 minutes to run on the Raspberry Pi 2 Model B, and approximately 20 minutes on earlier models of the Raspberry Pi)
3. When the install is finished you will need to reboot your Raspberry Pi
Gyroscope - angular rate sensor
±245/500/2000dps
Accelerometer - Linear acceleration sensor
±-2/4/8/16 g
Magnetometer - Magnetic Sensor
± 4/8/12/16 gauss
Barometer
260 - 1260 hPa absolute range
Temperature sensor
to ± 2 degC in the 0-65 degC
Relative Humidity sensor
8x8 LED matrix display
Small 5 button joystick
