Raspberry Pi Official 7" Touch Screen Display with 10
Note: Raspberry Pi and power supply are NOT included! Compatible with Raspberry Pi 3, Raspberry Pi 2, Model B+, and Model A+. The display will technically work with the Model A and Model B boards (connecting it to the DSI port on the Pi board), however the mounting holes on the back of the display will only line up with the newer board designs (A+, B+, Pi 2, and Pi 3).
The 7" Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. It is truly interactive as the latest software drivers will support a virtual 'on screen' keyboard, so there is no need to plug in a keyboard and mouse.
Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device
10 finger capacitive touch
Screen Dimensions: 194mm x 110mm x 20mm
Viewable screen size: 155mm x 86mm
Screen Resolution 800 x 480 pixels
Applications:
Consumer Electronics; Embedded Design & Development; Hobby & Education; Multimedia; Portable Devices

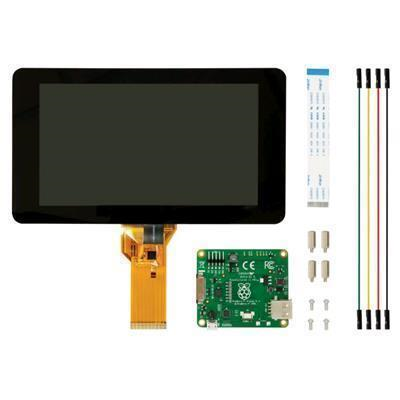

Kit Contents:
7inch Touchscreen Display x 1 pcs
Adapter Board x 1 pcs
Mounting Pillars x 4 pcs
Display Ribbon cable x 1 pcs
Jumper Wires x 4 pcs
Display
7inch 800 x 480 pixel resolution, 10 finger multi-point touchscreenScreen Dimensions: 194mm x 110mm x 20mm (including standoffs)
Viewable screen size
155mm x 86mm
Screen Resolution
800 x 480 pixels
Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.
Will require the latest version of Raspbian OS to operate correctly.
