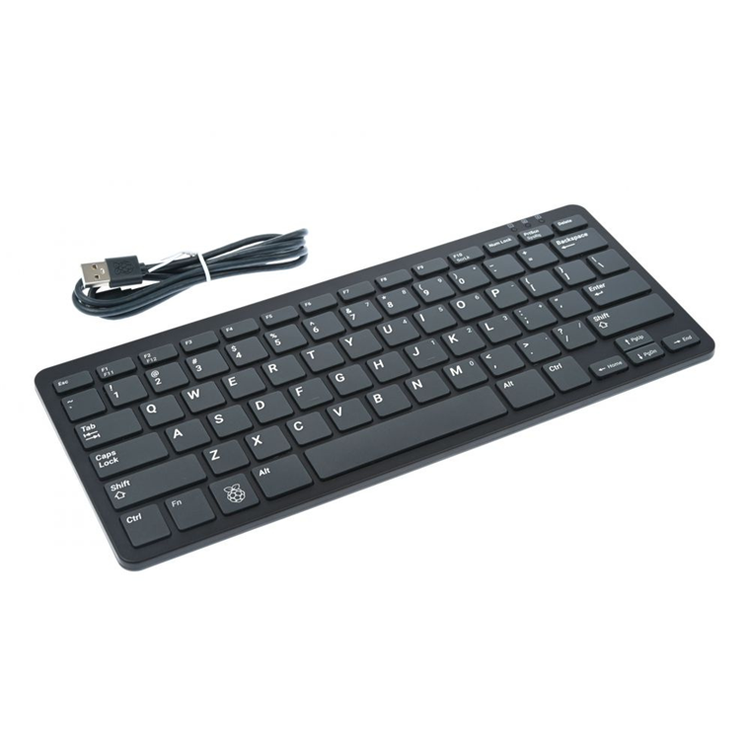

Raspberry Pi SC0197 Official Grey / Black Keyboard and Hub US Layout
The official Raspberry Pi keyboard and hub is a standard 79-key (78-key US) keyboard that includes an additional three USB 2.0 type A ports for powering other peripherals. The keyboard is available in different language/country options as detailed below. Getting-started-with-the-Raspberry-Pi-Keyboard-and-Mouse
Official Raspberry Pi Keyboard Our official keyboard includes three host USB ports for connecting external devices, such as USB mice, USB drives, and other USB-controlled devices. The product's micro USB port is for connection to the Raspberry Pi. Via the USB hub built into the keyboard, the Raspberry Pi controls, and provides power to, the three USB Type A ports Features of the keyboard The Raspberry Pi keyboard has three lock keys: Num Lock, Scroll Lock, and Caps Lock. There are three LEDs in the top right-hand corner that indicate which locks are enabled. Num Lock - Allows use of the red number keys on the letter keys, effectively creating a numeric keypad. This mode is enabled and disabled by pressing the Num Lock key. Caps Lock - Allows typing capital letters; press the Shift key to type lower-case letters in this mode. This mode is enabled and disabled by pressing the Caps Lock key. Scroll Lock (ScrLk) - Allows use of the cursor keys for browsing web pages and spreadsheets without the mouse. This mode is enabled and disabled by pressing the ScrLk key while holding the Fn key.
Connection diagram This is the configuration we recommend for using your Raspberry Pi, official keyboard and hub, and official mouse together. The hub on the keyboard ensures easy access to USB drives, and the mouse's cable is tidy, while being long enough to allow you to use the mouse left- or right-handed. Note: It is important that the power supply is connected to the Raspberry Pi and the keyboard is connected to the Raspberry Pi. If the power supply were connected to the keyboard, with the Raspberry Pi powered via the keyboard, then the keyboard would not operate correctly.
- Product
- 78-key keyboard for US model
- Colour
- Red / White
- USB Ports
- Three USB 2.0 type A ports for powering other peripherals
- Features
- Automatic keyboard language detection
- USB
- Type A to micro USB type B cable included for connection to compatible computer
- Weight
- 269g
- (376g including packaging)
- Dimensions
- 284.80mm 121.61mm × 20.34mm
- (330mm × 130mm × 28mm including packaging)
