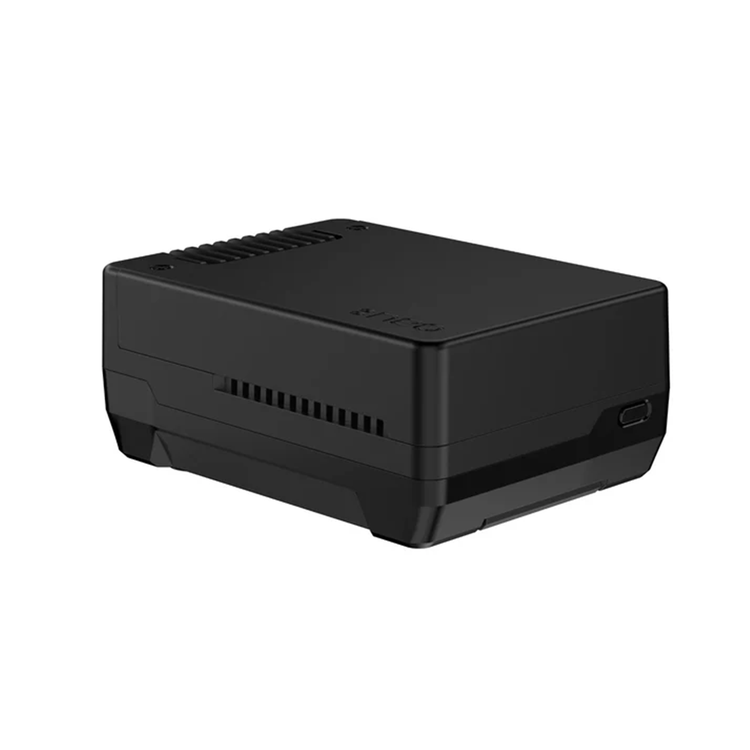

Raspberry Pi Argon NEO 5 M.2 Designed for Raspberry Pi 5 NVME PCIE Case
This case offers the same great features and style as the
standard NEO 5
but with the addition of
M.2 NVME support
(drive not included) allowing you to add lots of fast storage to your
Raspberry Pi 5
via the PCI-E header! The lower section of the case
accepts any
M.2 NVME SSD
with M-Key up to 2280 size
(not included), and even has an included aluminium heatsink to keep your drive cool. Just like the standard NEO 5, the case has a smooth aluminium alloy main body with both active and passive cooling for the ultimate cooling/quiet combo.
The case also gives access to all ports including the power button. With a
30mm internal PWM blower fan, combined with intake and exhaust vents, you can push your Pi 5 to the max and let the case handle cooling when it's needed. When you're not pushing things to the limits, the fan will turn off and allow the passive cooling features to take over, keeping your environment quiet. Note:
You will need to use an
official 27W Raspberry Pi power supply
with this case to ensure sufficient power for the Pi, case and NVMe drive. NVME Compatibility Some customers have reported compatibility issues with certain brands/models of NVME drives. Whilst no 'official' compatibility list is maintained by Argon40 (yet),
we have made them aware
and
discussions on their own forum
are highlighting the need for clarification. For now,
we suggest following the same compatibility list on the Pimoroni NVME Base page
as a starting point until something official is shared from Argon40. Please also read our
troubleshooting guide. Please also note that
double-sided NVME drives will not fit this product
(usually found with higher-capacity drives with components on both sides of the stick). Feature:
- Argon NEO 5 M.2 NVME Case further expands your Raspberry Pi 5 potential with included M.2 NVME Expansion Board support.
- Boot your Raspberry Pi 5 from an NVME M.2 Drive.
- Built-in HEATSINK for your M.2 NVME Drive
- Enjoy faster and higher storage access by connecting M.2 NVME drives via the PCIe slot on the Raspberry Pi 5
- Versatile M.2 NVME support compatible with any M.2 NVME with M-Key up to 2280 size
- Greater thermal management on M.2 NVME with included aluminum heatsink specific to M.2 drive to keep it cool, efficient and working longer
- Reliable and consistent data transfer with included FPC impedance controlled cable M.2 NVMe Drive Compatibility: Other drives may also be compatible but we have not tested yet. Western Digital SN850 Western Digital SN740 Western Digital SN570 Western Digital SN530 Western Digital Black SN750 SE (Phison Controller) Samsung 980 Pro Samsung 980 Sabrent Rocket Nano Sabrent Rocket 4.0 PNY CS1030 Origin Inception TLC830 Pro NVMe Netac NV3000 NVMe SSD Netac NV2000 NVMe SSD Lexar NM710 Lexar NM620 Kioxia Exceria NVMe SSD Kioxia Exceria G2 NVMe SSD Kingston KC3000 Kingston SNV2S NV2 Gen4 PCIe NVMe M.2 2280 Solid-State Drive Inland PCIe NVMe SSD Crucial P3 Plus M.2 Crucial P3 M.2 Crucial P2 M.2 Axe Memory Generic Drive AData XPG SX8200 Pro
