Overview

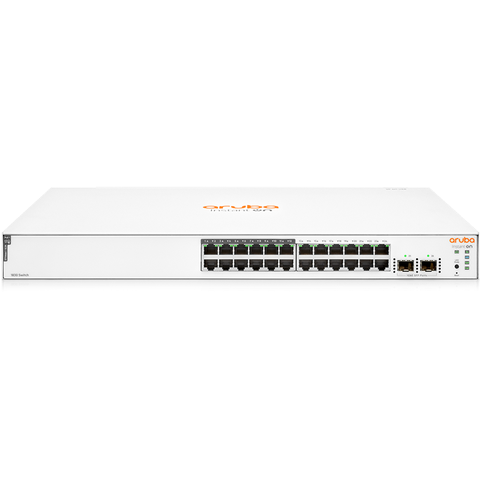

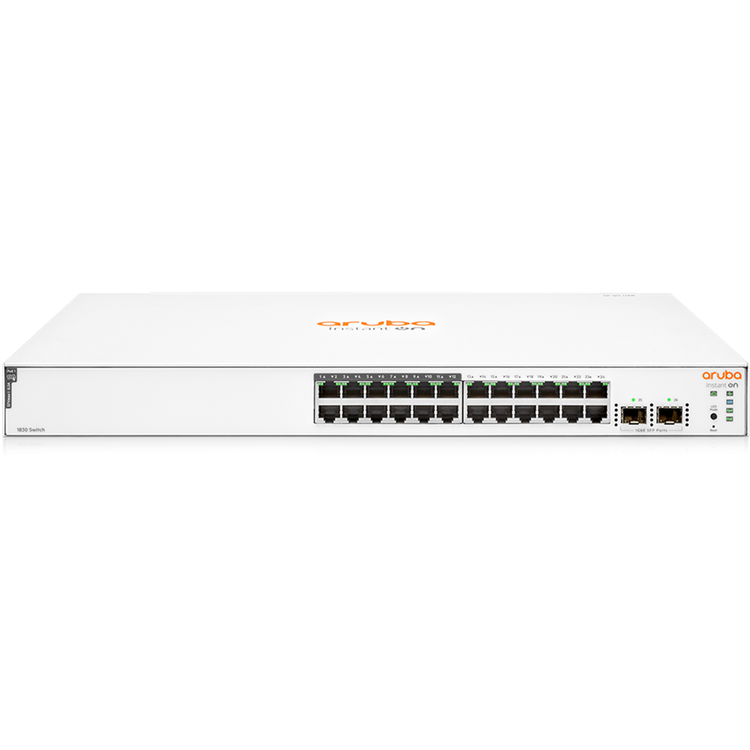

The Aruba Instant On 1830 JL813A 24-Port Gigabit PoE+ Compliant Managed Network Switch helps to quickly grow your small business's network capacity to keep up with the growing list of power over Ethernet devices such as IP security cameras, access points, and VoIP phones. This entry-level managed rackmount switch includes 24 Gigabit Ethernet ports, 12 of which are PoE+ compliant with a 195W power budget. Two Gigabit SFP ports are available for fiber connections. The JL813A also supports a host of Layer 2 features without any additional licensing fees. Use the Aruba Instant On mobile app, cloud-based web portal, or local web interface to quickly configure, manage, and monitor the Aruba Instant On 1830 network switch.
Performance
The Aruba Instant On 1830 switch features an 800 MHz ARM Cortex-A9 processor with 512MB of memory, 215MB of flash storage, and a 1.5MB packet buffer. It's designed to deliver smooth data transfers with a 52 Gb/s switching capacity and 38.68 Mpps forwarding rate.
Easy Management
The Aruba Instant On mobile app allows you to remotely configure, monitor, and manage your network switch without needing any additional hardware such as cloud keys or a VPN. You can also update firmware on your Instant On devices directly from the cloud, no matter where you are or what time it is.
Power-over-Ethernet
This switch includes 12 PoE+ complaint ports with a 195W power budget. Features such as automatic power configuration and scheduling allow you to efficiently operate your connected devices.
Multi-Site Remote Management
The cloud-hosted web interface and mobile app make it easy to remotely manage multiple sites and multiple networks with distributed and multi-tenant deployments. Each site is logically separated and has its own configuration, statistics, guest portal, and admin read/write privileges. Instant On also allows you to create three admin accounts per site, offering the option to lock accounts from accidental deletion.
Link Aggregation
This switch supports up to 16 groups of eight network ports, which may be configured to form high-bandwidth connections to compatible devices.
Management
Cloud-Based Management
Use the cloud-hosted web interface and mobile app to manage your networks and devices from almost anywhere.
Local Web GUI Management
The built-in web-based interface makes it easy for non-technical users to directly manage the Instant On 1830 switch. The interface supports up to five HTTP and HTTPS sessions.
Simple Network Time Protocol
The Simple Network Time Protocol (SNTP) automatically synchronizes the switch's date and time for accurate system event tracking and various schedules set by the administrator.
Security
Trusted Platform Module
The integrated Trusted Platform Module (TPM) provides secure, hardware-based generation and storage for cryptographic keys that are used for connections to the Instant On cloud portal.
Automatic Denial-of-Service Protection
The Instant On 1830 manages high-volume traffic and prevents denial-of-service (DoS) attacks against the network.
Global Storm Control
Protects against conditions where incoming packets flood the LAN, causing network performance degradation for unicast traffic with an unknown destination, and for broadcast and multicast traffic.
Interfaces
Ports
12 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
12 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit SFP
Protocols
Layer Services Supported
Layer 2 Support
Supported Protocols
Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
MAC Address Table Size
16K
Security
Security Features
DoS Attack Prevention
Storm Control
Standards
Supported IEEE Standards
802.1ab, 802.1d, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Latency
2.8 to 5.2 µs
Forwarding Rate
38.68 Mpps
Switching Bandwidth
52 Gb/s
Packet Buffer
1.5 MB
Computer
Flash Memory
256 MB
CPU
800 MHz Cortex A9 Single-Core
Memory
512 MB
Electrical
Power Draw
237.2 W (Max)
13.4 W (Idle)
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 1.4 to 2.7 A
PoE Power Budget
195 W
PoE per Port
30 W
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
15 to 95%
Storage Temperature
-40 to 158°F / -40 to 70°C
Storage Humidity
15 to 95%
Operating Altitude
10,000' / 3048 m
Noise Level
17.0 dB
General
Cooling System
Fan
Mean Time Between Failures (MTBF)
846,216 Hours
Rack Form Factor
1 RU
Dimensions
17.4 x 10 x 1.7" / 443 x 253 x 43.9 mm
Weight
7.65 lb / 3.47 kg
