CTC Union

CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C

Product Id SWHCTC1010
Traveller Price
Price: $127.20 NZD
Tax free price for international travellers
Product Id SWHCTC1010
View all CTC UnionSold by PB Tech
Description
CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C

Description

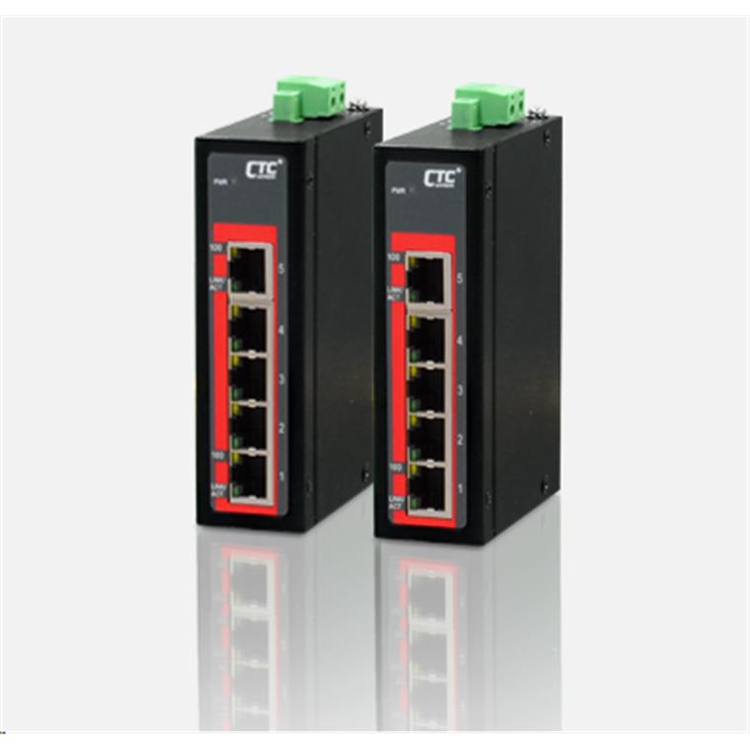

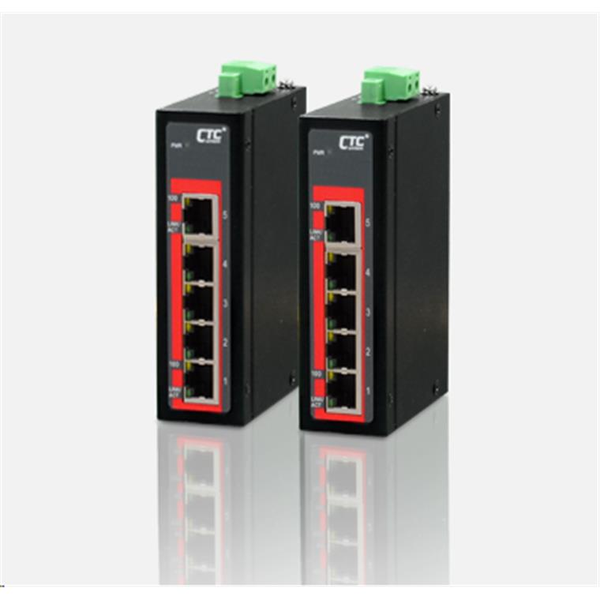

This model is a compact sized, non-managed industrial grade Fast Ethernet switch with 5 10/100Base-TX ports that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10 to 60°C) and wide operating temperature range models (-40 to 75°C) fulfill the special needs of industrial automation applications.


Features

- Wide range input power 12/24/48VDC (9.6~60VDC), or AC24V (18~36VAC)
- IP30 rugged metal housing and Fanless
- Compact size for easy installation
- Wide operating temperature -40 ~ 75°C (-E model )
- Provides broadcast storm protection
- Very low power consumption
- Supports flow control
- CE, FCC,and EN50121-4 for railway traffic certification
- Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified

IEEE Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3x Flow Control and Back Pressure

Switch Architecture
Back-plane (Switching Fabric) : 1.0 Gbps
Full wire-speed

Data Processing
Store and Forward

Transfer Rate
14,880pps for Ethernet port
148,800pps for Fast Ethernet port

Flow Control
IEEE 802.3x flow control, back pressure flow control

Provides Broadcast Storm Protection
Present

MAC Address Table
1K

Packet Buffer Size
448Kbits

Network Connector
5x RJ-45
RJ-45 Port: Auto MDI/MDI-X function, 10/100Base-TX auto negotiation speed, Full/Half duplex

Network Cable
10Base-T: 2-pair UTP/STP Cat. 5 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable
EIA/TIA-568 100-ohm (100m)

Protocol
CSMA/CD

LED
Per unit: Power (Green)
RJ-45 Per port: Link/Active (Green), Speed 100
(Yellow)

Reverse Polarity Protection
For DC input power protection

Overload Current Protection
Present

Power Supply
DC 12/24/48V (9.6~60VDC) or AC 24V (18~36VAC) input power (Removable Terminal Block)

Removable
Terminal Block Provides for input power (2 Pin)

Operating Humidity
5% to 95% (Non-condensing)

Storage Temperature
-40 ~ 85°C

Housing
Rugged Metal, IP30 Protection and Fanless

Dimensions
70 x 30 x 103 mm (D x W x H)

Weight
220g

Installation Mounting
DIN Rail mounting, or wall mounting (optional)

MTBF
1,013,759 Hours (MIL-HDBK-217)

Warranty
5 years
