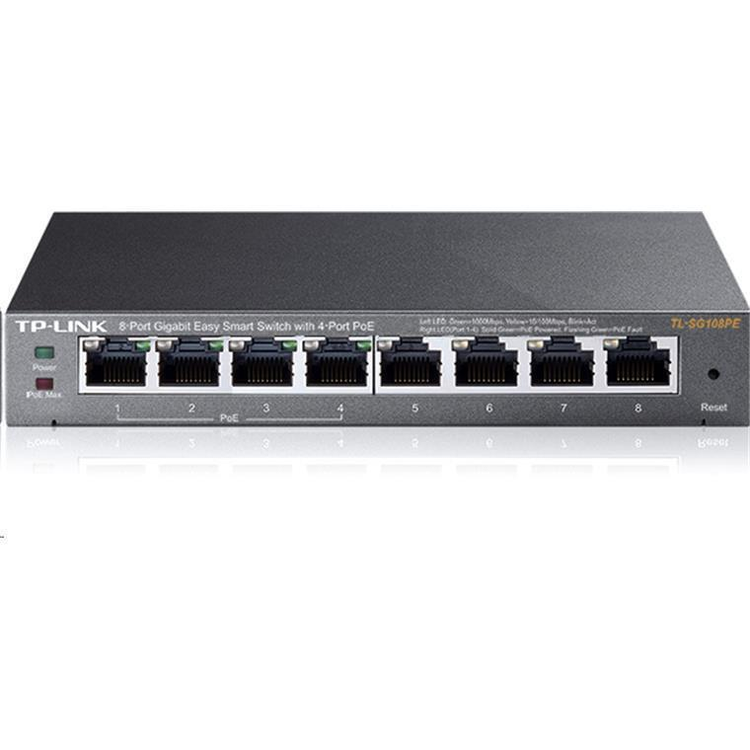

8-Port Gigabit Easy Smart Switch
with 4-Port PoE - 8 10/100/1000Mbps RJ45 ports - With 4 PoE ports, data and power can be transferred on one single cable- Provides network monitoring, traffic prioritization and VLAN features- Simple network set-up on top of plug-and-play connectivity- Web-based user interface and Easy Smart Configuration Utility simplify configuration What This Product Does The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed
specifically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring,
traffic prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
Multiple Application Scenarios The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Power Over Ethernet 4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Effective Management TL-SG108PE offers network monitoring for users to observe
traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring,
traffic prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic
based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.Easy to Use The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.
Making Management Easy TL-SG108PE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Durable Metal Casing The interior components of TL-SG108PE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
- IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface
- 8 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- Fan Quantity
- Fanless
- Power Supply
- External Power Adapter(Output: 48VDC / 1.25A)
- Power Consumption
- Maximum (PoE on): 65.2W (220V/50Hz)
- Maximum (PoE off): 5.2W (220V/50Hz)
- PoE Ports (RJ45)
- Standard: 802.3 af compliant
- PoE Ports: Port 1- Port 4
- PoE Power Budget: 55W
- Dimensions ( W x D x H )
- 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
- Max Power Consumption
- 5.41 W (220V/50Hz with no PD connected)
- 74.27 W (220V/50Hz with 64 W PD connected)
- Max Heat Dissipation
- 18.45 BTU/h (with no PD connected)
- 253.26 BTU/h (with 64 W PD connected)
- Switching Capacity
- 16Gbps
- Packet Forwarding Rate
- 11.9Mpps
- MAC Address Table
- 4K
- Packet Buffer Memory
- 1.5Mb
- Jumbo Frame
- 15KB
- Quality of Service
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features
- IGMP Snooping V1/V2/V3
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Management
- Web-based GUI
- Easy Smart Configuration Utility
- Transmission Method
- Store-And-Forward
- Certification
- FCC, CE, RoHS
- Package Contents
- TL-SG108PE
- Power Adapter
- Installation Guide
- Resource CD
- Rubber Feet
- System Requirements
- Microsoft® Windows® for running Utility
- Environment
- Operating Temperature: 0~40C (32~104F)
- Storage Temperature: -40~70C (-40~158F)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~95%RH non-condensing
