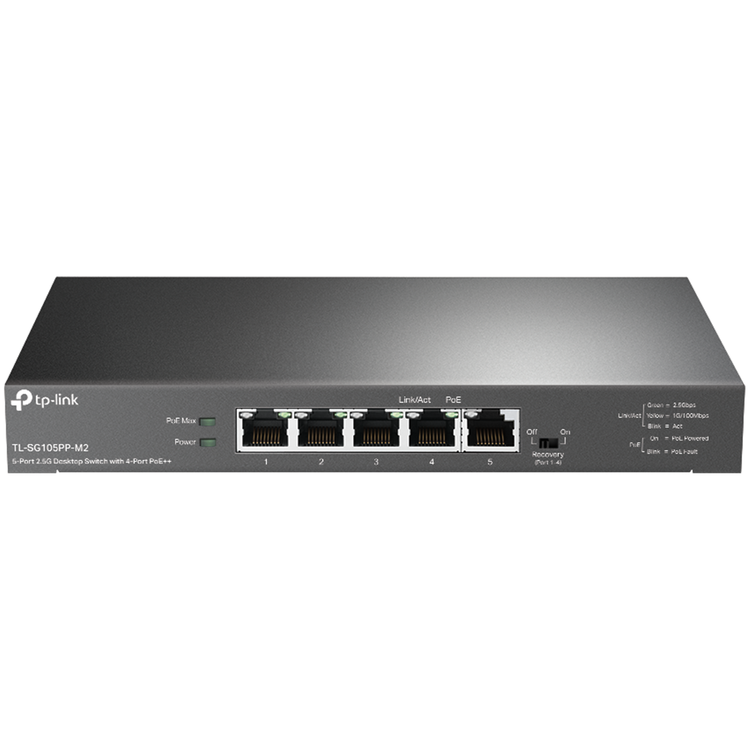

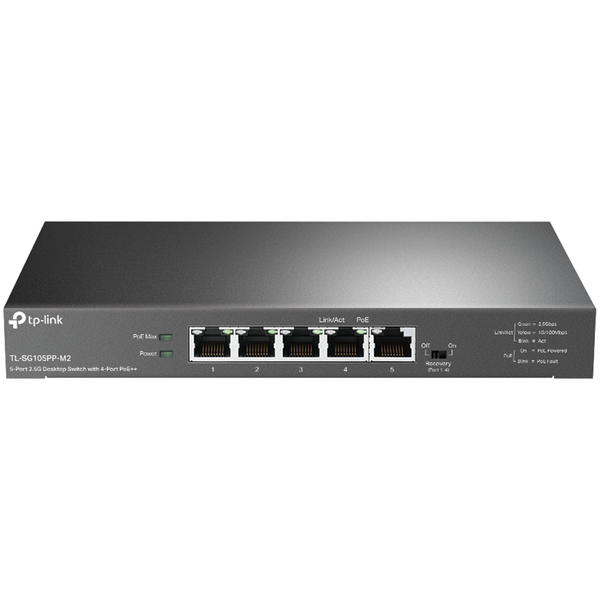

TL-SG105PP-M2
5-Port 2.5G Desktop Switch with 4-Port PoE++
- 5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- With four PoE++ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt type3 compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 60 W for each PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
HARDWARE FEATURES
Interface
- 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
18.6 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at/bt type3 compliant
- PoE++ Ports: Ports 1–4
- Power Supply: 123 W
Mac Address Table
4K
Switching Capacity
25 Gbps
Dimensions ( W x D x H )
8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption
- 7.57 W (220/50 Hz. no PD connected)
- 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation
- 25.81BTU/h (220 V/50 Hz with no PD connected)
- 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- PoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- TL-SG105PP-M2
- Power Adapter
- Installation Guide
- Rubber Feet
Environment
- Operating Temperature: 0–40 ? (32–104 ?);
- Storage Temperature: -40–70 ? (-40–158 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
