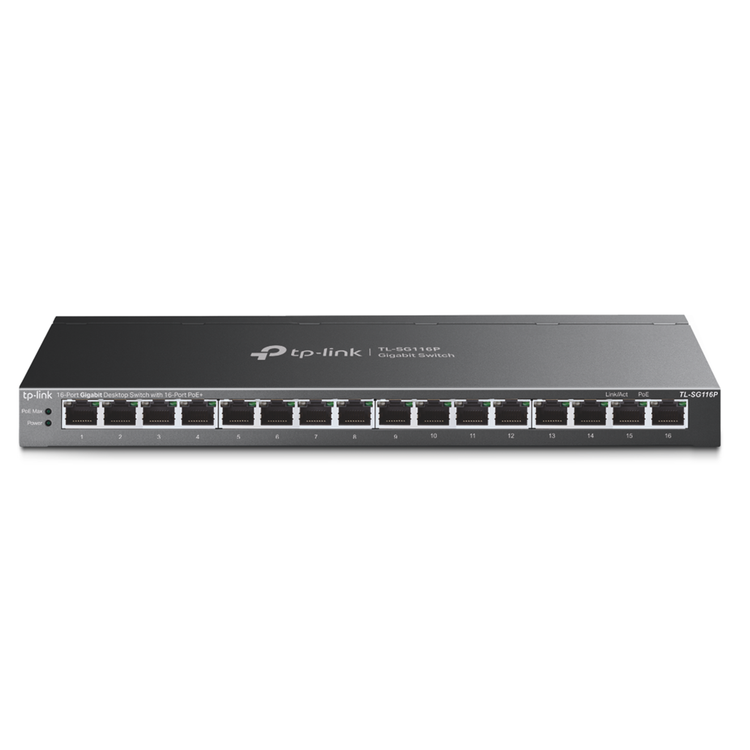

TP-Link TL-SG116P 16-Port Gigabit PoE Desktop Switch with 16-Port PoE+ (Max 120W)
Dedicated 16 PoE+ Ports (120 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 16× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
Port Prioritization
Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-4.
Enhanced with Port Isolation
Isolation Mode easily divides traffic for ports 1-7 or 8-14 to avoid snooping/tampering and isolates broadcast storm for higher security.
System Self-Healing
with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 120 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
High-Quality Metal25.4mm286mm111.7mm
Durable Metal Casing
The interior components of TL-SG116P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116P delivers switching performance you can depend on.
HARDWARE FEATURES
Interface
- 16× 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
23.8 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–16
- Power Supply: 120 W
Mac Address Table
8K, Auto-learning, Auto-aging
Switching Capacity
32 Gbps
Dimensions ( W x D x H )
11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)
Max Power Consumption
- 11.72 W (220 V / 50 Hz no PD connected) /11.56 W (110 V / 60 Hz no PD connected)
- 142.51 W (220 V / 50 Hz with 120 W* PD connected) /144.28 W (110 V / 60 Hz with 120 W* PD connected)
Max Heat Dissipation
- 39.85 BTU/h (220 V / 50 Hz no PD connected) /39.31 BTU/h (110 V / 60 Hz no PD connected)
- 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1–4)
- Isolation Mode Button (Ports 1–7 / 8-14)
- PoE Auto Recovery (Ports 1-16)
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- TL-SG116P
- Power Adapter
- Installation Guide
Environment
- Operating Temperature: 0–40 ? (32–104 ?);
- Storage Temperature: -40–70 ? (-40–158 ?)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
