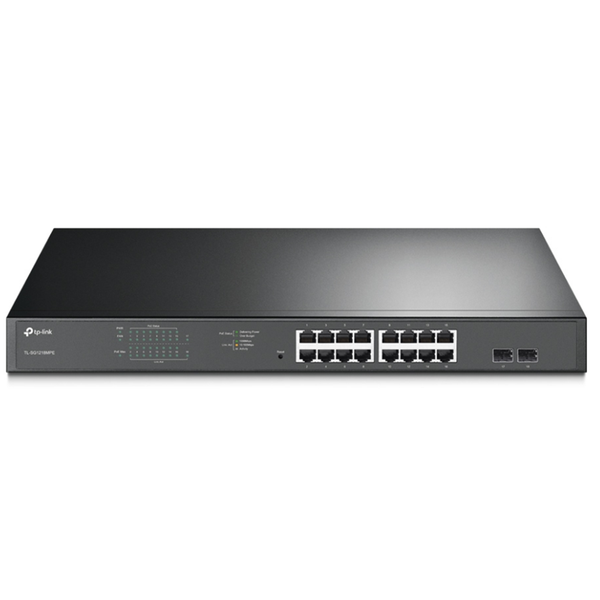

TP-Link TL-SG1218MPE 18-Port Gigabit Easy Smart PoE+ Switch (250W) -
- 16 x 10/100/1000Mbps RJ45 POE+ Ports Switch- PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems- Port Priority is able to
guarantee the quality of sensitive application like video monitor- Intelligent power management can protect the switch from overload - QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV. Ideal for Surveillance TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems. Transferring Data and Power for Access Points Easy to Use
Intelligent Power Management When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation. Advanced Functions for Higher Performance QoS For Smooth Online Experience: Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. IGMP Snooping Traffic Optimization for IPTV IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV. Making Management Easy TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
- Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
- Interface
- 16 10/100/1000 Mbps RJ45 Ports
- (Auto Negotiation/Auto MDI/MDIX)
- 2 Gigabit SFP Ports
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-X MMF, SMF
- Fan Quantity
- 2 Fans
- Physical Security Lock
- Yes
- Power Supply
- 100-240V AC, 50/60 Hz
- PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE+ Ports:16 Ports
- Power Supply: 192W
- Dimensions ( W x D x H )
- 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
- Mounting
- Rack Mountable
- Max Power Consumption
- 18.73 W (220/50Hz. no PD connected)
- 217.22 W (220/50Hz. with 192W PD connected)
- Max Heat Dissipation
- 63.89 BTU/h (no PD connected)
- 741.15 BTU/h (with 192W PD connected)
- Switching Capacity
- 36 Gbps
- Packet Forwarding Rate
- 23.8 Mbps
- MAC Address Table
- 8K
- Packet Buffer Memory
- 4.1 Mbit
- Jumbo Frame
- 9 KB
- Quality of Service
- Support Port-based 802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN
- Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
- Management
- Web-based GUI
- Easy Smart Configuration Utility
- Transmission Method
- Store-And-Forward
- Certification
- CE, FCC, RoHS
- Package Contents
- TL-SG1218MPE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
- Environment
- Operating Temperature: 0°C~50°C (32°F~122°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
