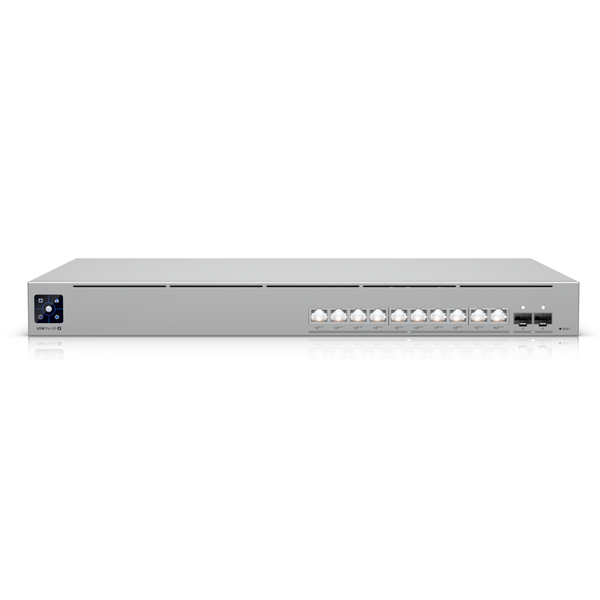

Ubiquiti Unifi USW-Pro-XG-10-PoE 12-Port 10G L3 Managed Etherlighting PoE Switch (400W)
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
- Dimensions
- 442.4 x 285 x 44 mm
- (17.4 x 11.2 x 1.7")
- Port Layout
- 10 GbE RJ45
- 10 (All PoE+++)
- (10G/5G/2.5G/1G/100M)
- 10G SFP+
- 2
- (10G/1G)
- Max. PoE Output
- Up to PoE+++
- Total PoE Availability
- 400W
- Redundancy
- DC Power Backup
- Layer 3
- Yes
- Form Factor
- Rack mount (1U)
- Etherlighting™
- Yes
- Switching Capacity
- 240 Gbps
- Total Non-Blocking Throughput
- 120 Gbps
- Forwarding Rate
- 179 Mpps
- Supported VLANs
- 1,000
- MAC Address Table Size
- 32,000
- ARP Entries
- 12,000
- IPv4 Routes
- 12,000
- Packet Buffer Size
- 2 MB
- Access Lists
- IPv4
- 128
- MAC
- 128
- DHCP Server (Local Networks)
- Yes
- DHCP Relay
- Yes
- Inter-VLAN Routing (Local Networks)
- Yes
- Static Routing (Local Networks)
- Yes
- LACP Port Aggregation
- Yes
- STP & RSTP
- Yes
- QoS (DSCP)
- Yes
- Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
- Yes
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
- Yes
- IGMP Snooping
- Yes
- 802.1X Control
- Yes
- MAC-Based ACLs & Device Isolation
- Yes
- DHCP Snooping & Guarding
- Yes
- Egress Rate Limit
- Yes
- Flow Control
- Yes
- Storm Control
- Yes
- Multicast & Broadcast Rate Limiting
- Yes
- MAC Address Blocking
- Yes
- IP-Based ACLs & Network Isolation
- Yes
- MAC-Based Port Restriction
- Yes
- Port Isolation
- Yes
- Port Mirroring
- Yes
- Jumbo Frames
- Yes
- LLDP-MED
- Yes
- Voice VLAN
- Yes
- Loop Protection
- Yes
- PoE Ports
- PoE+++
- 10
- Max. PoE Wattage per Port by PSE
- PoE
- 15.4W
- PoE+
- 30W
- PoE++
- 60W
- PoE+++
- 90W
- Max. Power Consumption
- 65W (Excluding PoE output)
- 520W (Including PoE output)
- Power Method
- (1) Universal input, 100-240V AC, 50/60 Hz
- (1) USP RPS DC input
- Power Input Method
- AC input
- Power Supply
- AC/DC, internal, 550W
- Supported Voltage Range
- 100-240V AC
- Management
- Ethernet
- AR
- Weight
- Without mounting brackets: 4.6 kg (10.14 lb)
- With mounting brackets: 4.7 kg (10.36 lb)
- Enclosure Material
- SGCC steel
- Mount Material
- SGCC steel
- Supported Rack Depth
- 400~1200 mm
- (15.7-47.2"")
- LCM Display
- 1.3" touchscreen
- ESD/EMP Protection
- Air: ± 30kV, contact: ± 30kV
- Ambient Operating Temperature
- -5 to 40° C (23 to 104° F)
- Ambient Operating Humidity
- 10 to 90% noncondensing
- Ethernet
- Yes
- SFP+
- Yes
- NDAA Compliant
- Yes
- Certifications
- CE, FCC, IC
- Application Requirements
- UniFi Network
- Version 9.1.120 and later
