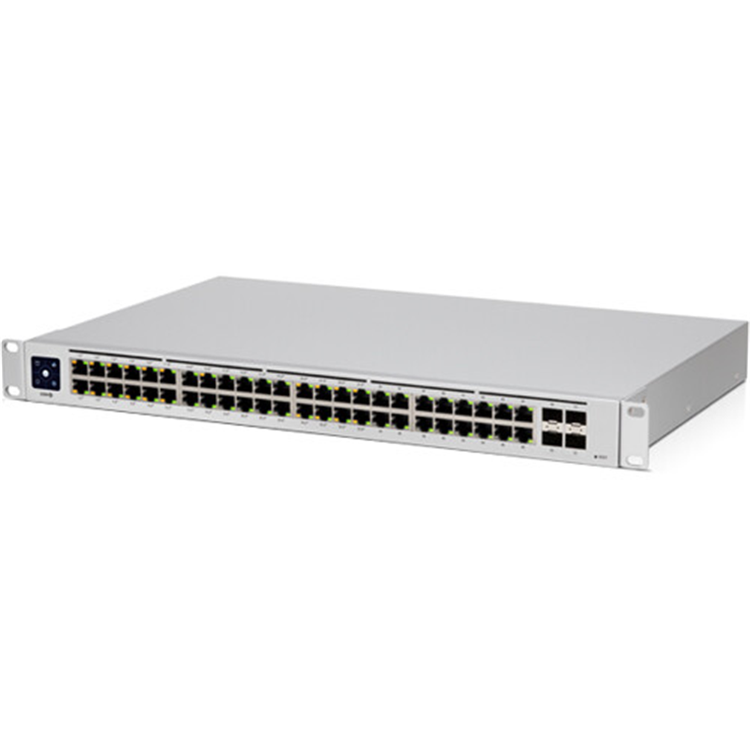

Ubiquiti UniFi Switch Gen2 USW-48-POE 48-Port Gigabit Managed PoE+ Switch Network Switch
UniFi Switch 48 PoE
48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.
The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
- (4) 1G SFP Ports
- 1.3" touch LCM
- Managed by UniFi Controller
- 240W Power supply
- Managed by UniFi Network Controller version: 5.12.32 or higher
Scalable UniFi Network Controller
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.
Deep Packet Inspection
Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
Dimensions
442.4 x 285 x 43.7 mm
(17.42 x 11.22 x 1.72")
Weight
4.52 kg (9.97 lb)
Weight with Rackmount Brackets
4.61 kg (10.16 lb)
Networking Interface
(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports
Management Interface
Ethernet In-Band
Power Method
100-240VAC, 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 240W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
45W
RJ45 Data Ports LEDs
PoE; Speed/Link/Activity
SFP Data Ports LEDs
Link/Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
POE
PoE Interfaces Ports 1-32
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE 802.3at
32W
Voltage Range 802.3af Mode
44-57V
Voltage Range 802.3at Mode
50-57V
