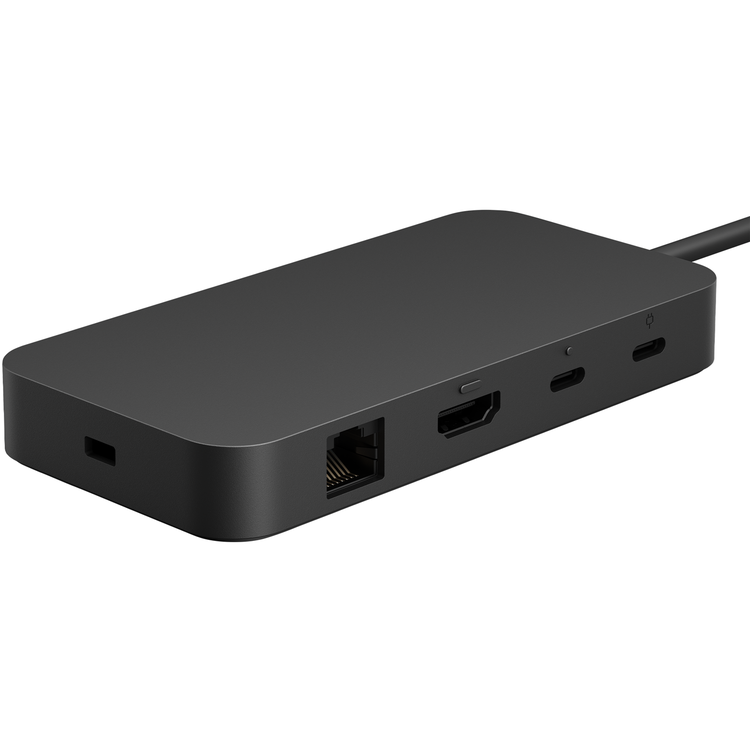

Microsoft Surface USB4 Dock
- Four times data transfer speed than USB 3.2 with up to 40Gbps1 speed.
- Supports either two 4K monitors2 at 60Hz via USB-C®2,3 or HDMI 2.1 ports, or a single 8K monitor at 30Hz via USB-C port.
- Supports fast charging with up to 65W power passthrough via USB-C for your device and connected accessories.
- Surface USB4® Dock’s sleek and compact design ensures your workspace remains neat and well-organised.
- Front and rear-facing ports have raised tactile indicators helping you find and identify ports with ease.
- Supports Giga Ethernet, ensuring a fast and reliable connection.
- Designed to work with Surface devices and compatible with USB-C and USB4 /Thunderbolt™ devices.1,4
- Connect the peripherals you need via two USB-C, one USB-A, HDMI and Ethernet ports.
Peak performance with the power of USB4
One single USB-C2,3 / USB4 cable powers your device and adds the productivity you need.
Take Surface devices from low full battery with up to 65W of power passthrough.
Enjoy high-speed data transfer of up to 40 Gbps1 - 4x faster USB-C/USB 3.2
Supports GIGa Ethernet, ensuring fast and reliable connection keeping you productive.
Compatible with USB-C devices
Designed to work with Surface Devices including Surface Pro 8, 9, Pro (11th Edition), Laptop 5, 6, and Laptop (7th Edition).
Compatible with any USB-C and USB4 / Thunderbolt 4 device.
Expanded port availability
Six ports for your device and peripherals
1. USB-C (USB4 Gen 3, compatible with Thunderbold 4, video display enabled, 7.5W)
2. USB-A (USB 3.2 Gen2, 7.5W)
3. USB-C for PSU only
4. USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5W)
5. HDMI 2.1
6. Ethernet (1Gbit/s)
Inclusive Design
Most frequently used ports are positioned at the front for effortless access and connectivity.
Rear-facing ports are distinguishable by their tactile cues providing user-friendly port functionality.
[1] Surface USB4® Dock is compatible with USB-C® devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors, as described in the section on this page: Connect multiple monitors to devices without USB4/Thunderbolt 4.
https://learn.microsoft.com/surface/surface-dock-whats-new#connect-multiple-monitors-to-devices-without-usb4thunderbolt-4
[2] Requires device with USB4®/Thunderbolt 4 port and a supported device and display.
[3] USB-C® is a registered trademark of USB implementers Forum.
[4] Additional compatibility details can be found at https://aka.ms/SurfaceDockCompatibility.
https://learn.microsoft.com/en-us/surface/surface-thunderbolt4-dock
Compatibility
Surface USB4Footnote® Dock for Business is designed to work with Surface Devices2 and compatible with any USB-C®1,3 and USB4®/Thunderbolt™ 4 device. For more details on USB-C charging compatibility please visit: USB-C and Fast Charging for Surface - Microsoft Support
Surface Pro for Business, Copilot+ PC | Intel
Surface Laptop for Business, Copilot+ PC | Intel
Surface Pro for Business, Copilot+ PC | Snapdragon
Surface Laptop for Business, Copilot+ PC | Snapdragon
Surface Pro 10
Surface Laptop 6
Surface Laptop 5
Surface Pro 8
Surface Pro 9 (Intel/WiFi)
The USB4 supports two 4k external displays up to 60Hz (when supported by device and display).
Compatible with devices with USB-C3 port:
Dimensions
120 mm x 60 mm x 15 mm (4.72" x 2.36" x 0.59")
Weight
206g
Connections
100 W power supply (up to 65 W passthrough). (100 PSU in-box not sold separately)
USB-C /USB4 left-oriented Cable (80 cm) with dual LED indicator lights that confirm your Surface is docked and charging.
USB4 supports: Charging, Dual display, up to 40 Gb/s data transfer.
1 front-facing USB-A (USB 3.2 Gen 2, 7.5 W)
1 front-facing USB-CFootnote (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5 W)
1 rear-facing USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5 W)
1 rear facing HDMI 2.1.
1 rear-facing USB-C for PSU only.
1 Ethernet (1 Gbit/s)
Security lock support4 (Kensington compatible)
What's in the box
Microsoft Surface USB4 Dock for Business
100 W USB-C Power Supply
Manageability
For supported host devices:
Media Access Control (MAC) address passthrough5
Firmware update through Windows Update and Surface app
Wake on LAN from Modern Standby, S4/S5
Accessibility
Tactile indicators for easily identifying the ports
Sustainability
Surface USB4 Dock for Business is designed with sustainability in mind
Sustainability in the supply chain
Our supply chain for devices is shifting to 100% carbon-free electricity for Microsoft-related production
At least 89 key suppliers have already made the transition to carbon-free electricity, with more in progress.
To contribute to Microsoft's goal of 100% carbon-free electricity by 2030, 40% of our key devices suppliers have already transitioned to CFE.
We have transitioned 89 key devices suppliers, expanding CFE use to 392K MWh and avoiding 232K mtC02e in emissions.
More recycled materials
Surface USB4 Dock for Business contains a minimum of 55.2% recycled content.6
Surface USB4 Dock for Business contains more recycled materials than any previous Dock, including recycled tin, recycled gold and recycled plastic.7
Microsoft set a goal to be carbon negative, water positive and achieve zero waste by 2030. Learn more about how we design with sustainability in mind Microsoft Surface Sustainability
Notes
[1] Surface USB4 Dock for Business is compatible with USB-C® devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors, as described in the section on this page: Connect multiple monitors to devices without USB4/Thunderbolt 4.
[2] Surface USB4 Dock for Business is compatible with Surface devices that support USB-C charging. For more details on USB-C charging compatibility, please visit: USB-C and Fast Charging for Surface - Microsoft Support
[3] Dual 4k monitors support require devices with USB4/Thunderbolt 4 port.
[4] Security lock not included
[5] MAC address passthrough are available on selected host devices and supported operating systems.
[6] Dock (excluding PSU) contains 55.2% recycled content. This includes 11.8% recycled plastics, consisting of a minimum of 50% recycled plastics and 0.3% other recycled metals, consisting of 100% recycled gold in PCB and 100% recycled tin in solder. Based on validation performed by Underwriter Laboratories, Inc. using Environmental Claim Validation Procedure (EVCP) for Recycled Content, UL EVCP-2809-2, Second Edition, dated 20 June 2024. Recycled Content is defined in accordance with ISO 14201.
[7] Dock (excluding PSU) contains 55.2% recycled content. This includes 11.8% recycled plastics, consisting of a minimum of 50% recycled plastics and 0.3% other recycled metals, consisting of 100% recycled gold in PCB and 100% recycled tin in solder. Based on validation performed by Underwriter Laboratories, Inc. using Environmental Claim Validation Procedure (EVCP) for Recycled Content, UL EVCP-2809-2, Second Edition, dated 20 June 2024. Recycled Content is defined in accordance with ISO 14201.
[8] Microsoft's Limited Warranty is in addition to your consumer law rights.
USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
