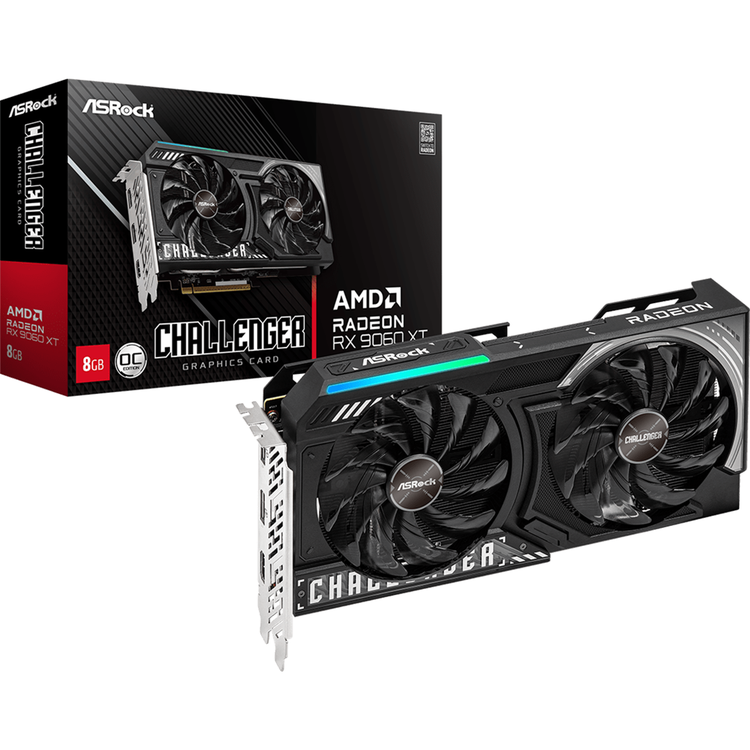

AMD Radeon™ RX 9060 XT Challenger 8GB OC
CLOCK: GPU / MEMORY
Boost Clock*: Up to 3290 MHz/ 20Gbps
Game Clock**: 2700 MHz/ 20Gbps
KEY SPECIFICATIONS:
AMD Radeon™ RX 9060 XT GPU
8GB GDDR6 on 128-bit Memory Bus
AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express5.0 Support
1 x 8-pin Power Connectors
2 x DisplayPort™ 2.1a / 1 x HDMI™ 2.1b
CLOCK: GPU / MEMORY
Dual Fan Design
Stylish Metal Backplate
LED Indicator
LED On/Off Switch
Striped Axial Fan
0db Silent Cooling
Super Alloy Graphic Card
Dual Fan Design - Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.
Stylish Metal Backplate - Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
LED Indicators - More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful.
LED Switch - Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Striped Axial Fan - Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad - Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock's premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Designed For Lightning-fast Gaming, Powered By AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
Graphics Engine
AMD Radeon™ RX 9060 XT
Bus Standard
PCI® Express5.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
GDDR6 8GB
Engine Clock
Boost Clock: 3290 MHz
Game Clock: 2700 MHz
Stream Processors
2048
Compute Units
32
Memory Clock
20Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution: 7680x4320
Interface
1 x HDMI™ 2.1b
2 x DisplayPort™ 2.1a
HDCP
Yes
Multi-view
3
Recommended PSU
550W
Power Connector
1 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
249 x 132 x 41 mm
Net Weight
645 g
