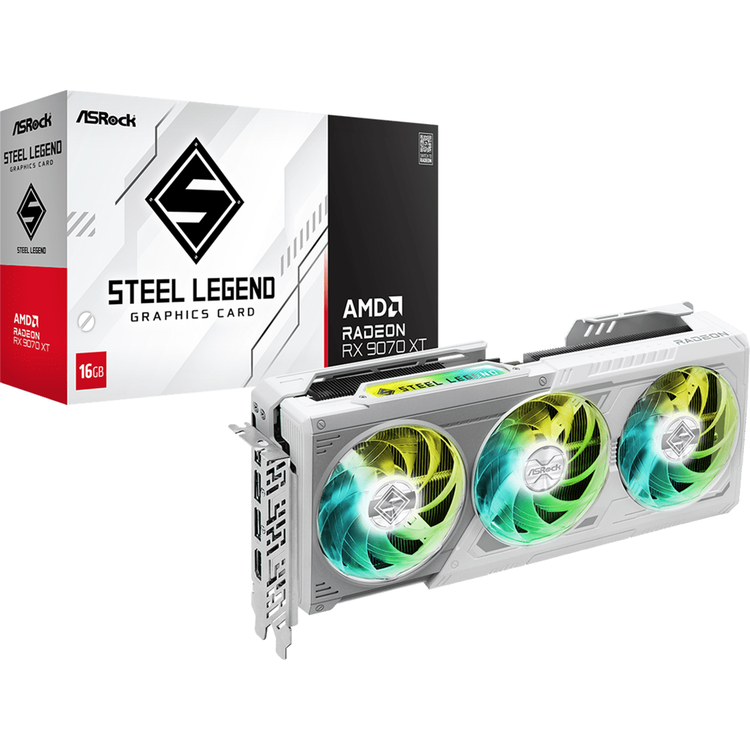

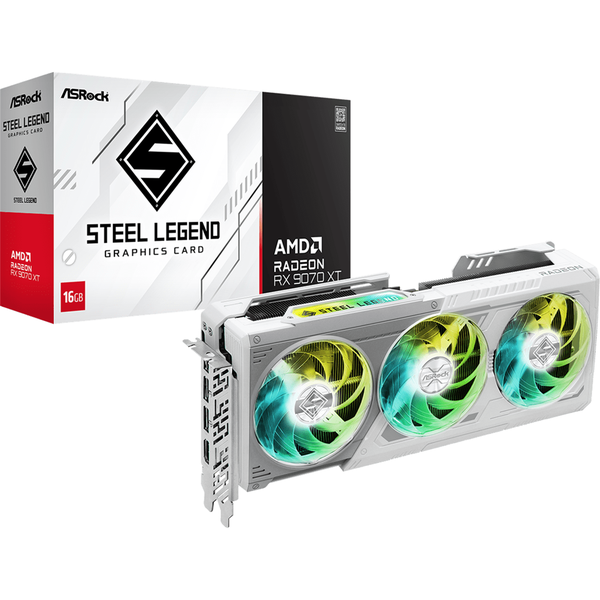

ASRock AMD Radeon RX 9070 XT Steel Legend 16GB GDDR6 Graphics Card
AMD Radeon™ RX 9070 XT Steel Legend 16GB
Clock: GPU / Memory
Boost Clock*: Up to 2970 MHz / 20 Gbps
Game Clock**: 2400 MHz / 20 Gbps
Key Specification
AMD Radeon™ RX 9070 XT GPU
16GB GDDR6 on 256-Bit Memory Bus
AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
2x 8-pin Power Connectors
3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
Key Features
Polychrome SYNC
Triple Fan Design
Stylish Metal Backplate
Striped Ring Fan
Reinforced Metal Frame
Air Deflecting Fin
Ultra-fit Heatpipe
Super Alloy Graphics Card
Polychrome SYNC - Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch & ARGB Header
LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate - Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Reinforced Metal Frame - Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
Striped Ring Fan - Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin - Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base - Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Premium Thermal Pad - Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
ALL YOU NEED FOR ULTRA FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX6 to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 41, delivering an immersive gaming experience now and for years to come.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 41 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution1, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
FUTURE READY TECH WITH AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology3 to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
Graphics Engine
AMD Radeon™ RX 9070 XT
Bus Standard
PCI® Express 5.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
16GB GDDR6
Engine Clock
Boost Clock: Up to 2970 MHz*
Game Clock: 2400 MHz**
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
4096
Memory Clock
20 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
3x DisplayPort 2.1a
1x HDMI 2.1b
HDCP
Yes
Multi-view
4
Recommended PSU
800W
Power Connector
2x 8-pin
Accessories
1x Quick Installation Guide
Dimensions
298 x 131 x 58 mm, 2.9-slot
Net Weight
1155 g
