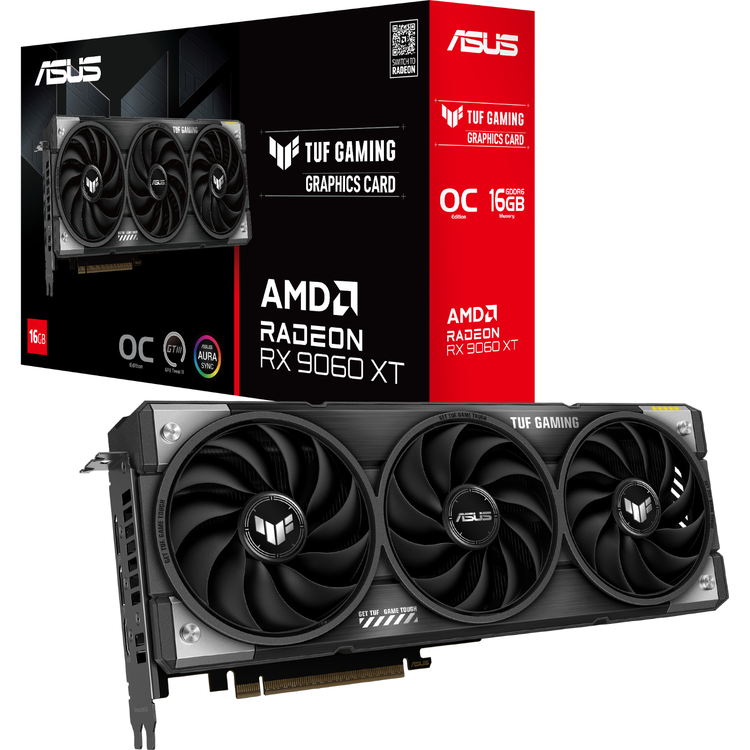

Game TUF. Built to Last. ASUS TUF Gaming Radeon™ RX 9060 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Premium Durability
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 55°C, for quieter operation during light tasks. They restart above 60°C, following a speed curve that balances performance and acoustics.
Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation.
ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.
Auto-Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultimate GPU Tuning Utility
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and the Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display and logging capabilities ensure that you get the most out of your graphics card.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
DESIGNED FOR LIGHTNING-FAST GAMING, POWERED BY AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
Graphic Engine
AMD Radeon™ RX 9060 XT
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR6
Engine Clock
TBD
Stream Processors
2048
Memory Speed
20 Gbps?
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)
Maximum Display Support
3
NVlink/ Crossfire Support
No
Accessories
1 x TUF certificate of Reliability
1 x TUF Velcro Hook & Loop
1 x TUF Fridge Magnet
1 x Thank you card
1 x Speedsetup Manual
Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
304 x 126 x 50mm
Recommended PSU
550W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
AURA SYNC
RGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the "Choose By Wattage" feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* 'Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
