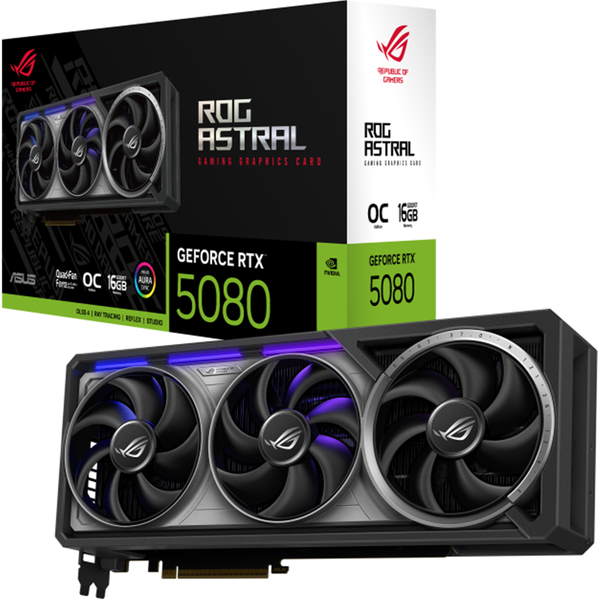

ROG Astral GeForce RTX™ 5080 - The Final Frontier
The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Engineered for Excellence
Driven by a passion for innovation and the pursuit of precision, we crafted the ROG Astral. Inspired by the universe’s wonders, it blends art and technology, achieving stellar cooling and unmated performance.
Fan Design
Four axial tech fan design enhances airflow for optimal cooling.
Indirect Aura Lighting
ARGB lighting allows for personalized setting.
Cooling Expertise - Quad-Fan Force
A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.
Optimized Fin Spacing
The addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.
Patented Vapor Chamber
A patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.
MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Premium Power Delivery
Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Auto-Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultra Rigid Metal Case
A high-quality diecast frame, shroud, and backplate tightly brace the PCB for rigidity, and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable mounting.
GPU Tweak III: Effortless GPU Monitoring and Tuning
Effortless Overclocking
GPU Tweak III lets you effortlessly fine-tune overclocking settings to achieve peak performance. It includes OC mode & Silent mode toggles, an OC scanner and a Voltage-Frequency Tuner for precise adjustments.
Thermal Map
Embedded sensors across the VRMs, chokes and VRAM collect data for the Thermal Map, empowering you to check real-time temperatures in each area and to easily adjust system settings for optimized performance.
Power Detector+
Power Detector+ can detect anomalies across any of the six power pins from the 12VHPWR cable. If a fault is detected, you are immediately notified that the power cable needs to be reseated.
Mileage
The Mileage feature tracks usage at different power levels, so you can keep an eye on what kind of load you have used across multiple game sessions.
FanConnect II
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.
Aura Sync
With indirect Aura ARGB lighting, the ROG Astral GeForce RTX 5080 provides endless possibilities for personalization with color or functional effects. Use it with other Aura components to create a uniquely coordinated build.
Grow Your Dreams with AI Magic
MuseTree is an AI-powered image-generation app designed to spark your creativity. Effortlessly create and manage images and visual ideas, unlocking endless new inspirations. With its intuitive visual interface, generating stunning images has never been easier!
Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
TBD
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
TBD
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 3)?
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 76 mm
14.1 x 5.9 x 3 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.8 Slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the "Choose By Wattage" feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
