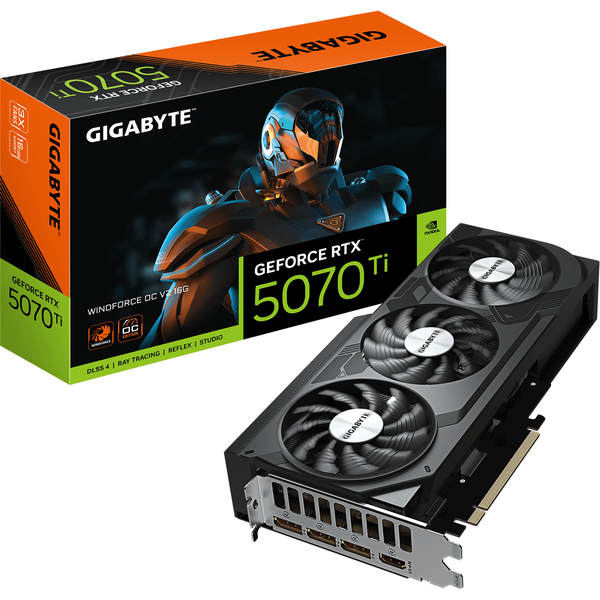

Gigabyte NVIDIA GeForce RTX 5070 Ti WINDFORCE OC V2 16GB GDDR7 Graphics Card
GeForce RTX™ 5070 Ti WINDFORCE OC V2 16G
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- Reinforced structure
- CORE CLOCK
- 2497 MHz (Reference: 2452 MHz)
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation
Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp
True-to-Life Graphics
Full ray tracing with neural rendering
Digital Humans and AI Assistants
NVIDIA ACE
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers
The Ultimate Gaming Display Technologies
NVIDIA G-SYNC
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPES
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
SUPERIOR CRAFTSMANSHIP
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Graphics Processing
GeForce RTX™ 5070 Ti
Core Clock
2497 MHz (Reference: 2452 MHz)
CUDA® Cores
8960
Memory Clock
28 Gbps
Memory Size
16GB
Memory Type
GDDR7
Memory Bus
256 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=261 W=126 H=50 mm
PCB Form
ATX
DirectX
DirectX 12 API
OpenGL
OpenGL 4.6
Recommended PSU
750W
Power Connectors
16 pin*1
Output
DisplayPort 2.1b x3
HDMI 2.1b x1
Accessories
1. Quick guide
2. 1x 12V-2x6 to 2x PCIe 8pin adapter
- Graphics Processing
- GeForce RTX™ 5070 Ti
- Core Clock
- 2497 MHz (Reference: 2452 MHz)
- CUDA® Cores
- 8960
- Memory Clock
- 28 Gbps
- Memory Size
- 16GB
- Memory Type
- GDDR7
- Memory Bus
- 256 bit
- Card Bus
- PCI-E 5.0
- Digital max resolution
- 7680 x 4320
- Multi-view
- 4
- Card size
- L=261 W=126 H=50 mm
- PCB Form
- ATX
- DirectX
- DirectX 12 API
- OpenGL
- OpenGL 4.6
- Recommended PSU
- 750W
- Power Connectors
- 16 pin*1
- Output
- DisplayPort 2.1b x3
- HDMI 2.1b x1
- Accessories
- 1. Quick guide
- 2. 1x 12V-2x6 to 2x PCIe 8pin adapter
