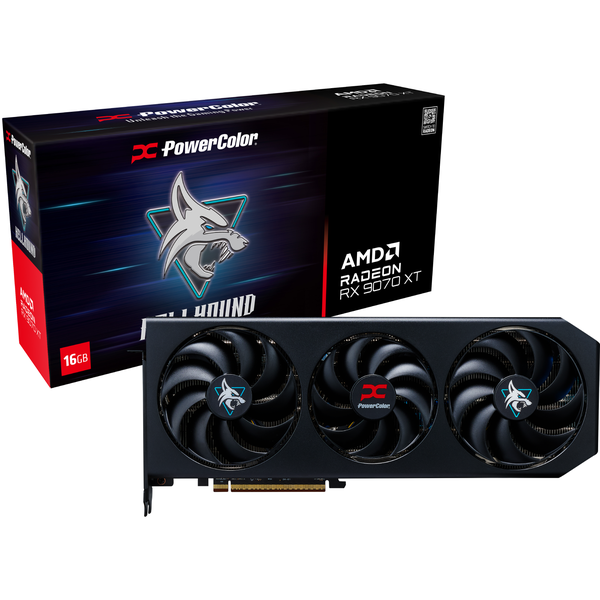

Powercolor Hellhound AMD Radeon RX 9070 XT 16GB GDDR6 Graphics Card
A New Dawn for Hellhound: Power in Every Shade
The Hellhound has stood as the steadfast guardian of the gaming realm, delivering unshakable reliability and raw power to gamers everywhere. Bold in strength yet sleek in design, it's ever-ready to answer the call of battle. With its signature LED color-ice blue-it offers a stunning, atmospheric glow for your PC build. The Hellhound doesn't just play-it dominates, all while redefining style in the gaming underworld.
Forged for Power and Precision
The PowerColor Hellhound RX 9070 Series delivers unmatched performance and reliability. Featuring a triple-ring fan design , 6 x 6f heatpipes, and a copper plate in direct contact with the GPU and VRAM, it ensures exceptional cooling efficiency. Engineered with a excellent phase VRM design and DrMOS with IMON real-time digital monitoring, it's built to provide stable, high-performance output for intense gaming sessions. The Hellhound is your ultimate ally in the heat of battle.
1. Metal Reinforced Backplate
2. Dual BIOS
3. High-Quality PCB Design
4. High-Efficiency DrMOS Power Module
5. Icy Blue Lighting Effects
6. Pure Copper Nickel-Plated Heatpipes
7. High-Efficiency Ring Blade Fans
8. Two 8-Pin PCI-E Power Connectors
9. TBP Monitoring with 12V Source Detection
10. Supports PCIe 5.0 x16
11. Honeywell PTM7950
High Quality Japanese Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
Intelligent Fan Controller
Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60? and shut down below 50?. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.
High-Efficiency Ring Blade Fans
Designed for passionate gamers, delivering the coolest experience. Exclusive ring blade design with up to 9 blades improves fan speed while maintaining low noise levels. It enhances air pressure and airflow, achieving optimal cooling performance.
Low-Turbulence Reverse Fan Design
The outer two fans feature a reverse-rotation design that effectively reduces air turbulence during intake, enhancing cooling efficiency. This design not only improves airflow and air pressure but also reduces operational noise, allowing you to enjoy efficient cooling with a quieter gaming experience.
GPU Direct-Contact Copper
Plate Efficient heat conduction at all times. Features a large, smooth nickel-plated copper base covering the GPU and memory, capable of rapidly absorbing and evenly dissipating heat. Ensures effective cooling even during high-speed operations.
Vertical Fin Heatsink
A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.
Optimum Heatpipe Arrangement
A set of 6 x 6f nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.
High-Thermal Conductivity Honeywell PTM7950
The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
High-Efficiency DrMOS Power Module
Providing reliable support for every gamer, the Hellhound features a 10+1 phase power design, along with a dedicated 3+2 phase memory power supply . Equipped with conductive polymer capacitors, it ensures long lifespan, high conversion efficiency, and effectively reduces power loss during transmission.
High Quality PCB Design
Utilizes a 12-layer high thermal conductivity PCB material with a 2oz power layer, reducing signal attenuation during high-frequency transmission. This design meets the stability and high-current demands of advanced GPUs.
Reinforced Metal Backplate
Crafted from durable metal material, the backplate not only enhances overall structural support to prevent PCB bending and component damage but also integrates an excellent thermal design. Specially designed ventilation holes on the backplate improve heat dissipation efficiency and ensure stability even under heavy loads, providing users with safer and more reliable protection.
Dual BIOS Mode
Hellhound graphics cards feature Dual BIOS built-in and a switch for easy swapping.
-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance."
LED Lighting in Icy Blue
Showcasing a cool and elegant aesthetic, the icy blue LED lighting sets a high-class tone. Gamers can easily switch between modes using the dual-stage switch, letting the Hellhound dominate your gaming world and deliver a unique visual feast.
ALL YOU NEED FOR ULTRA-FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon™ RX 9000 Series Graphics are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
FUTURE READY TECH WITH AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support, and up to 16GB of video memory to experience AAA games in all their visual glory, now and for years to come.
Graphics Engine
AMD Radeon™ RX 9070 XT
Model Name
RX9070XT 16G-L/OC
Series
Hellhound
Stream Processor
4096 Units
Video Memory
16GB GDDR6
Memory Speed
20.0 Gbps
Memory Interface
256-bit
Engine Clock(OC)
up to 2460MHz(Game)[1]
up to 3010MHz(Boost)[2]
Engine Clock(STD/Silent)
up to 2400MHz(Game)[1]
up to 2970MHz(Boost)[2]
Bus Standard
PCIE 5.0 x16
Standard Display Connectors
1 x HDMI 2.1,3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)
DirectX® Support
12
OpenGL
4.6
AMD Eyefinity Technology
Support
AMD Stream Technology
Support
AMD Smart Access Memory
Support
Maximum Resolution
DisplayPort 7680×4320
HDMI 7680×4320
Board Dimensions
327mm*128mm*49mm
340mm*142mm*49mm(with bracket)
Slot
2.5
Minimum System Power requirement (W)
800W[3]
Extension Power Connector
Two 8-pin PCI Express Power connectors
Remark
[1]Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
[2]Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
[3]Recommended power supply for AMD Radeon RX 9070 XT graphics card is minimum 800W or greater power supply with 12V output > 75A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.
