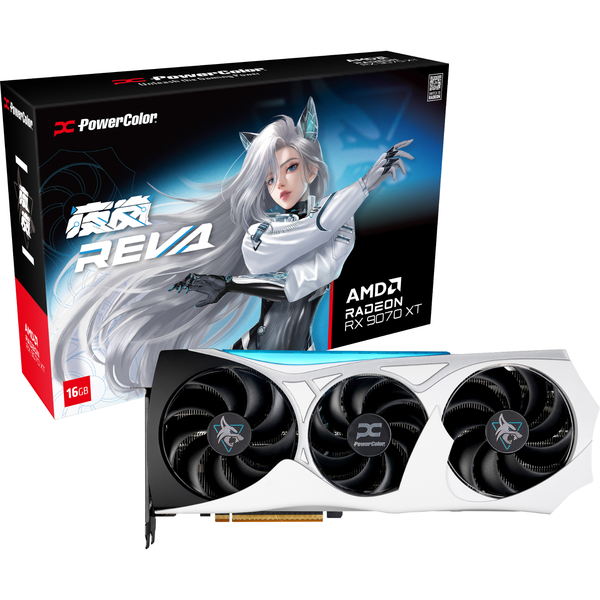

Powercolor Hellhound AMD Radeon RX 9070 XT Reva Edition 16GB GDDR6 Graphics Card
Elevating your Setup
Free wallpaper to complete your Reva Set up
Dual BIOS - Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.
Intelligent Fan Control - Precise Temperature Sensor Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Six 6f nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
Experience Cutting-Edge Graphics Card for Gamers
High-Efficiency DrMOS Power Module - Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 10+1 phase power design, along with a dedicated 3+2 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Premium-Quality PCB - Enhanced Signal Stability for Uninterrupted Performance
Crafted with 12-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.
Engineered for Rapid Cooling - Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.
Honeywell PTM7950 - Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Six 6f nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.
Arctic Blue Glow
Sleek and elegant with Blue LED lighting, easily controlled by a physical switch.
AMD RDNA™ 4 Architecture
New AMD RDNA™ 4 architecture features 3rd Gen raytracing and 2nd Gen AI accelerators to deliver the performance you need to max out your gaming.
AMD FreeSync™ Technology*
Pair with AMD certified AMD FreeSync™ technology-enabled monitors for an exceptional stutter and tear-free gaming experience.
AMD HYPR-RX*
With a single click, automatically enable all the performance boosting, latency reducing features from AMD Software in thousands of games.
AMD Radeon™ Anti-Lag 2*
Ultra-low-latency gaming, and when combined with AMD FSR advanced frame generation, it delivers ultra-smooth, ultra-responsive high FPS experiences.
Graphics Engine
AMD Radeon™ RX 9070 XT
Model Name
RX9070XT 16G-L/OC/REVA
Series
Hellhound Reva
Stream Processor
4096 Units
Video Memory
16GB GDDR6
Memory Speed
20.0 Gbps
Memory Interface
256-bit
Engine Clock(OC)
up to 2460MHz(Game)[1]
up to 3010MHz(Boost)[2]
Engine Clock(STD/Silent)
up to 2400MHz(Game)[1]
up to 2970MHz(Boost)[2]
Bus Standard
PCIE 5.0 x16
Standard Display Connectors
1 x HDMI 2.1b,3 x DisplayPort 2.1a
DirectX® Support
12
OpenGL
4.6
AMD Eyefinity Technology
Support
AMD Stream Technology
Support
AMD Smart Access Memory
Support
Maximum Resolution
DisplayPort 7680×4320
HDMI 7680×4320
Board Dimensions
332mm*122mm*57mm
346mm*151mm*57mm(with bracket)
Slot
2.5
Minimum System Power requirement (W)
800W
Extension Power Connector
Two 8-pin PCI Express Power connectors
Remark
[1]Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
[2]Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
- Graphics Engine
- AMD Radeon™ RX 9070 XT
- Model Name
- RX9070XT 16G-L/OC/REVA
- Series
- Hellhound Reva
- Stream Processor
- 4096 Units
- Video Memory
- 16GB GDDR6
- Memory Speed
- 20.0 Gbps
- Memory Interface
- 256-bit
- Engine Clock(OC)
- up to 2460MHz(Game)[1]
- up to 3010MHz(Boost)[2]
- Engine Clock(STD/Silent)
- up to 2400MHz(Game)[1]
- up to 2970MHz(Boost)[2]
- Bus Standard
- PCIE 5.0 x16
- Standard Display Connectors
- 1 x HDMI 2.1b,3 x DisplayPort 2.1a
- DirectX® Support
- 12
- OpenGL
- 4.6
- AMD Eyefinity Technology
- Support
- AMD Stream Technology
- Support
- AMD Smart Access Memory
- Support
- Maximum Resolution
- DisplayPort 7680×4320
- HDMI 7680×4320
- Board Dimensions
- 332mm*122mm*57mm
- 346mm*151mm*57mm(with bracket)
- Slot
- 2.5
- Minimum System Power requirement (W)
- 800W
- Extension Power Connector
- Two 8-pin PCI Express Power connectors
- Remark
- [1]Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
- [2]Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
