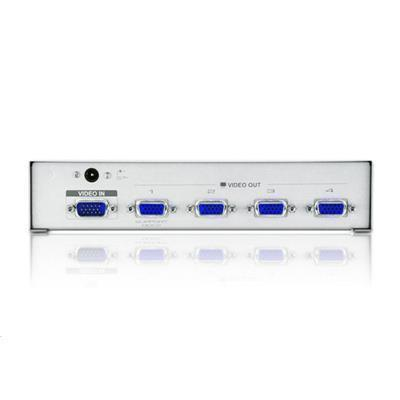

The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 65 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Features
- One video input to 4 video outputs
- Cascadable to 3 levels - provides up to 64 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 65 m
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
Video Input
Interface
1 x HDB-15 Male (Blue)
Impedance
75 Ohms
Max Distance
1.8 m
Video Output
Interface
4 x HDB-15 Female (Blue)
Impedance
75 Ohms
Video
Max. Bandwidth
350 MHz
Max. Resolutions
Up to 1920 x 1440
Max Distance
Up to 30 m
Power
Connector
1 x DC Jack
Consumption
9 VDC, 2.03W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20 - 60°C
Humidity
0-80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.61 kg
Dimensions (L x W x H)
20.00 x 7.51 x 4.40 cm
